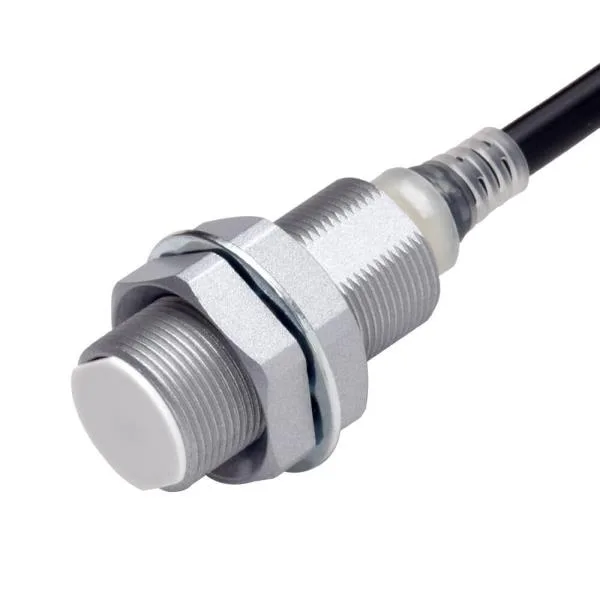

The Omron E2EQ-X11D118 5M is an M18 inductive proximity sensor with 11 mm sensing distance, DC 2-wire normally open output, and a pre-wired PVC cable.
The M18 size drops into a standard 18 mm mounting hole, matching common bracket designs and panel cutouts. The 11 mm sensing range is specified for ferrous targets; this is a shielded sensor (flush mounting), so it can be countersunk into metal without derating the detection distance. DC 2-wire operation simplifies wiring—only two conductors for power and output—but requires attention to the load impedance. Omron specifies a minimum load current and maximum off-state leakage; verify the PLC input or relay coil draws at least the minimum current to avoid false triggering. The 5-meter PVC cable gives flexibility for routing within a panel but adds bulk at the gland plate. PVC jacketing suits dry indoor environments; if you need oil or coolant resistance, check the E2EQ NEXT family for PUR cable options.
For procurement: we source this current-gen part through Omron's authorized channel. No supply risk from obsolescence; the mature tag indicates high volume and multiple factory sources.
Not a drop-in for E2C-X1R5AH
If your BOM currently calls out E2C-X1R5AH, the E2EQ-X11D118 5M is not a functional substitute. The E2C is an M8 shielded head with 1.5 mm range and a separate amplifier; this Omron E2EQ is a self-contained M18 sensor with 11 mm range. They differ in mounting hole size, sensing distance, and cable connection. No wiring or mechanical interchange exists.
