What this M30 sensor brings to a BOM line

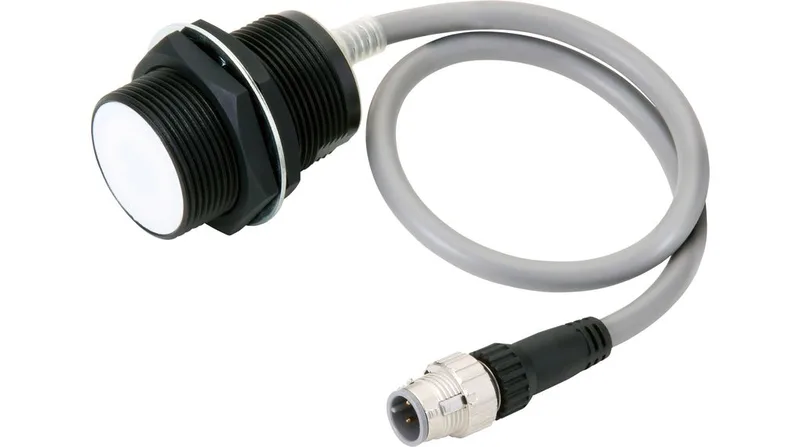

The Omron E2EQX10D1GM1GJT03MOMS is a flush-mount M30 inductive proximity sensor from the E2EQ NEXT series, built to sense ferrous metal targets up to 10 mm with a repeat accuracy of 10 %. Switching up to 400 Hz, it fits into applications where cycle times demand a fast response from a robust brass-housed sensor. The NO (make contact) output switches loads up to 100 mA, 30 VDC.
Mounting and integration reality
With a 42 mm hex body height and width, and 56 mm length including the sensor face, this sensor uses the standard M30 mounting thread. The 300 mm cable termination simplifies wiring in tight panels but requires a planned cable route to a terminal block or connector. IP67 rating means it survives washdown environments; the brass housing resists corrosion in industrial atmospheres. Operating temperature spans -25 °C to 70 °C.
