Omron E2EQX3D1GM1GJT03MOMS — Proximity Sensors

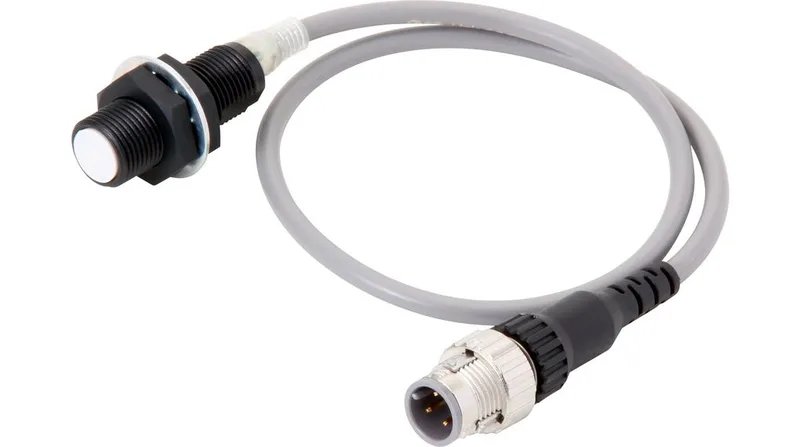

Omron E2EQX3D1GM1GJT03MOMS M12 Inductive Sensor, 3mm

MPNE2EQX3D1GM1GJT03MOMS

Omron E2EQ NEXT series, M12 flush-mount inductive proximity sensor, 3 mm sensing distance, 100 mA load, IP67, brass housing, cable 300 mm.

$140.24Ref. price · indicative, final on quote
Omron E2EQX3D1GM1GJT03MOMS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2EQX3D1GM1GJT03MOMS — Identification
ParameterValue
SeriesE2EQ NEXT
E2EQX3D1GM1GJT03MOMS — Sensing
ParameterValue
Sensing distance, max.3 mm
E2EQX3D1GM1GJT03MOMS — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeCable, 300 mm
E2EQX3D1GM1GJT03MOMS — Output
ParameterValue
Switching frequency1 kHz
Load current100 mA
E2EQX3D1GM1GJT03MOMS — Mechanical
ParameterValue
Mounting typeFlush Mount
Length38 mm
Housing materialBrass
E2EQX3D1GM1GJT03MOMS — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
IP protection ratingIP67

Product details

Fit and function at a glance

The E2EQX3D1GM1GJT03MOMS is a flush-mount M12 inductive sensor from Omron's E2EQ NEXT line. It detects ferrous targets up to 3 mm away and switches at 1 kHz, suitable for counting or positioning on fast-moving assemblies. The brass barrel and IP67 rating handle coolant splash and washdown routines, though the 70°C max ambient keeps it away from steam enclosures. Output is a normally open solid-state switch rated for 100 mA continuous.

The E2AM12KS04M1B14OMS uses an M12 connector and has a 17 mm square body; this unit measures 21 mm, uses a cable, and has 3 mm sensing distance vs 4 mm and 100 mA vs 200 mA.

Frequently asked questions

What is the width and height of this sensor?

The sensor body measures 21 mm wide by 21 mm high and 38 mm long.

Can I drop this into a panel designed for the E2AM12KS04M1B14OMS?

No. The E2AM12KS04M1B14OMS requires a 17 mm cutout and an M12 connector, while this unit is 21 mm wide and terminated with a 300 mm cable. Panel modifications are needed.
