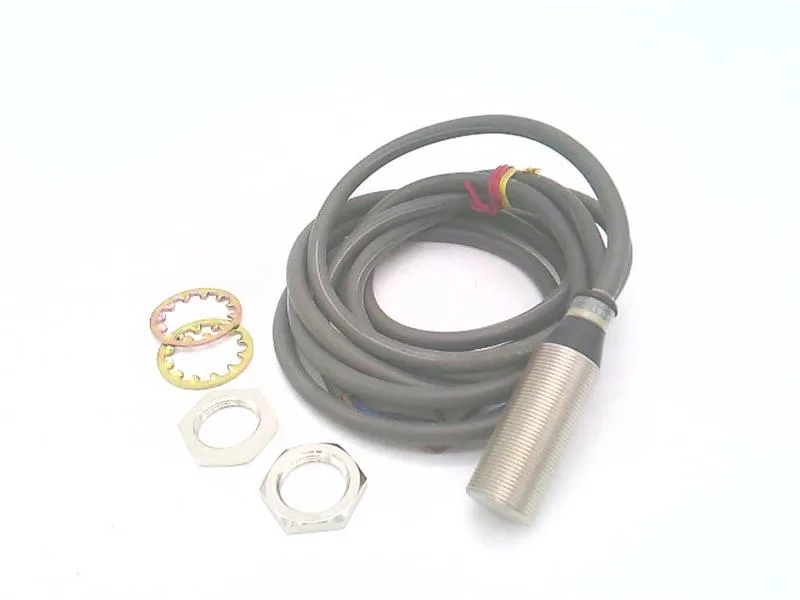

Omron E2EV-X5B1 is an M18 flush-mount inductive proximity sensor in a metal housing. Switching output is PNP normally open at 100 mA, rated for 12–24 VDC supply. Sensing distance is 0–3.5 mm, terminated via an M12 connector. The flush mounting means the sensor face does not protrude past the mounting surface, so targets passing within the rated gap are detected without needing a recessed pocket. Use it for position feedback of metal objects in automation cells, conveyor stops, or die-cast part presence.

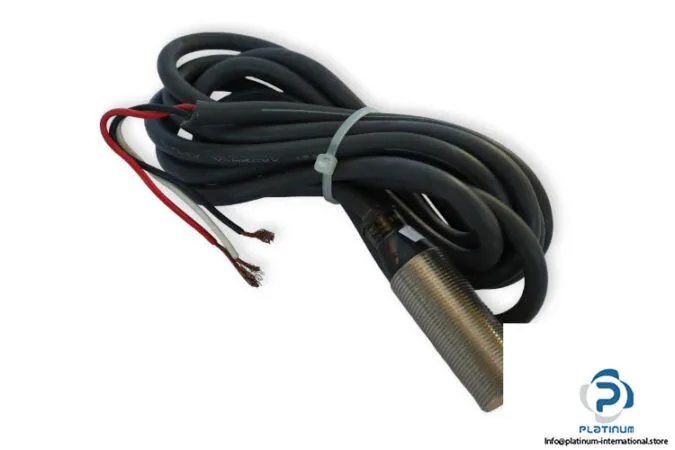

Omron E2EV-X5B1 Inductive Sensor, M18 Flush, PNP NO, 3.5 mm
MPNE2EV-X5B1
Omron E2EV-X5B1 inductive proximity sensor – M18 flush mount, PNP normally open, 3.5 mm sensing distance, 12–24 VDC, 100 mA output, M12 connector.
$500.99Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Switching output | Normally open |
| Parameter | Value |
|---|---|
| Housing material | Metal |
| Parameter | Value |
|---|---|
| Operating temperature range | -10 … 55°C |
| Parameter | Value |
|---|---|
| Model | E2EV-X5B1 |
| Weight | 0,14 kg |
| Mounting | Flush |
| Condition | Used |
| Shelf no. | 240105 |
| Dimensions | M18,60 mm |
| Connector type | M12 |
| Current rating | 100 mA |
| Type of product | Inductive Sensor |
| Setting distance | 0 … 3.5 mm |
| Electrical design | PNP |
| Operating voltage | 12 … 24 V DC |
Product details
MPN
E2EV-X5B1
