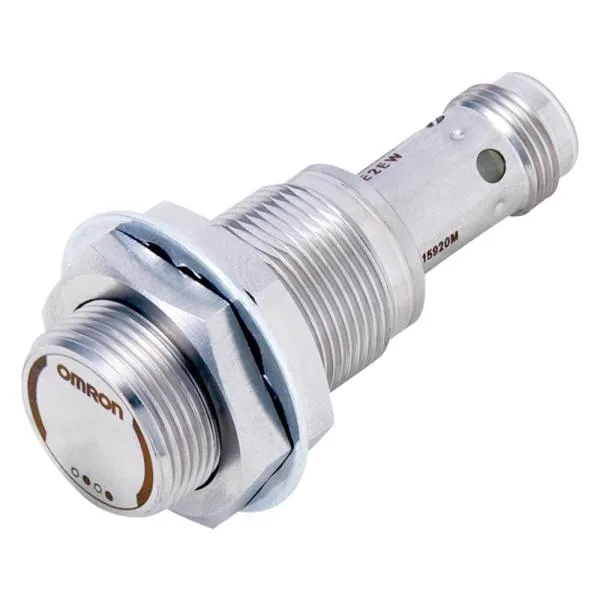

The Omron E2EW-X6B3T12-M1 is a weld-field-immune inductive proximity sensor designed for reliable detection of ferrous metals in harsh welding environments. It uses a 6 mm sensing distance in an M12 barrel form factor, with IO-Link communication at 230.4 kbps for diagnostics and remote parameterization.
The 6 mm sensing distance is the assured range for a standard ferrous target; for the weld-field-immune variant, this value holds even in the presence of electromagnetic interference from welding currents. The M12 barrel size and M12 connector are a common mounting and wiring standard — the sensor can be swapped into existing M12 ports without re-cabling. IO-Link at 230.4 kbps provides process data, identification, and event monitoring. For a controls integrator, this means the sensor can report its own health and switching state over a standard three-wire interface, reducing the need for dedicated diagnostic wiring. Output is PNP open-collector with both NO and NC contacts available, giving flexibility for safety circuits or PLC input mapping without additional interposing relays.
Integration note
Mounts in an M12 barrel clamp or through-hole and mates to standard M12 cordsets; power and signal are DC 3-wire PNP (verify PLC input type). IO-Link master must support 230.4 kbps for full diagnostics; weld-field immunity allows placement near welding tips without false triggers.
