Omron E2EX15B1TL30M1OMS — Proximity Sensors

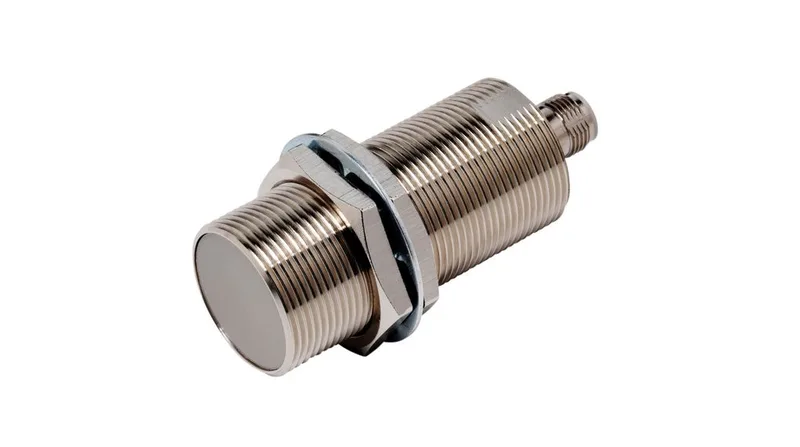

Omron E2EX15B1TL30M1OMS Inductive Sensor, PNP NO 15mm

MPNE2EX15B1TL30M1OMS

Omron, E2E-Next series, inductive proximity sensor, E2EX15B1TL30M1OMS, M30 flush mount, PNP normally open, 15 mm sensing distance, M12 connector, IP67/IP69K.

$72.28Ref. price · indicative, final on quote
Omron E2EX15B1TL30M1OMS datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2EX15B1TL30M1OMS — Identification
ParameterValue
SeriesE2E-Next
E2EX15B1TL30M1OMS — Sensing
ParameterValue
Sensing distance, max.15 mm
E2EX15B1TL30M1OMS — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeConnector, M12, 4-Pin
E2EX15B1TL30M1OMS — Output
ParameterValue
Switching frequency250 Hz
Load current200 mA
E2EX15B1TL30M1OMS — Mechanical
ParameterValue
Mounting typeFlush Mount
Length80 mm
Housing materialBrass Nickel Plated
E2EX15B1TL30M1OMS — Environmental
ParameterValue
Operating temperature, max.85 °C
Operating temperature, min.-40 °C
IP protection ratingIP67;IP69K
E2EX15B1TL30M1OMS — Other specifications
ParameterValue
Construction formM30
Current consumption16 mA
Inductive sensor output typePNP, NO

Product details

The Omron E2EX15B1TL30M1OMS is a flush-mounted inductive sensor from the E2E-Next series, built for reliable metal-target detection in industrial environments. It switches PNP normally open at 250 Hz, covering a rated sensing distance of 15 mm with an M30 threaded barrel. The brass nickel-plated housing carries IP67 and IP69K protection, so it handles high-pressure washdown zones without issues. Operating range stretches from -40 °C to 85 °C, which covers most outdoor and washdown areas.

Sensor length is 80 mm. It uses an M12 4-pin connector and operates on 10-30 V DC.

Frequently asked questions

Will the E2EX15B1TL30M1OMS drop into a panel originally specified around the E2AM12KS04M1B14OMS?

No. The two sensors are physically incompatible — the E2EX15B1TL30M1OMS uses an M30 threaded body (30 mm diameter) and the E2AM12KS04M1B14OMS uses an M12 body (12 mm diameter). The mounting hole, bracket, and target sensing distance (15 mm vs. 4 mm) are completely different. Rewiring may also be required because although both use M12 connectors, the pin assignments could differ. A panel designed for the M12 sensor would need mechanical rework to accept this M30 sensor.
