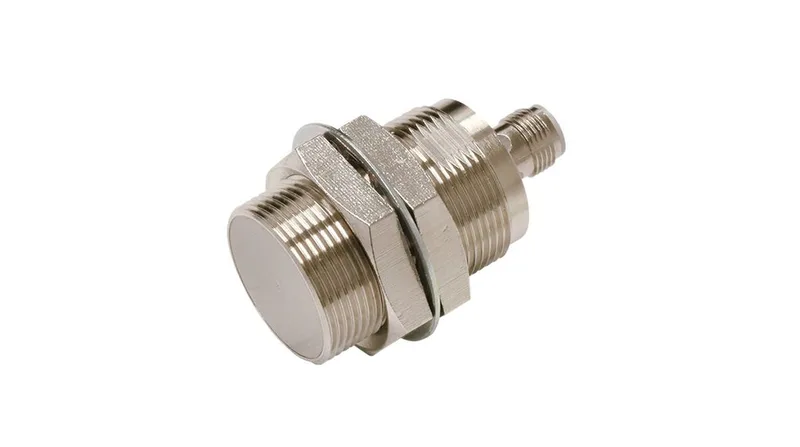

The E2EX15B3D30M1OMS: M30 flush-mount inductive sensor from the E2E-Next series, rated for 15 mm sensing distance on mild steel. Output is PNP, programmable NO or NC, switched at up to 250 Hz. The M12 4-pin connector mates to standard industrial cable assemblies; no pigtail to dress. Current consumption is 20 mA with load capacity at 100 mA.
Lifecycle status is current. No PCN or last-time-buy window has been announced for this order code.
Flush mount permits embedment in metal without derating the 15 mm sensing distance. The brass-nickel-plated barrel and IP67/IP67G/IP69K sealing handle washdown environments and high-pressure cleaning — a common requirement for food or pharmaceutical packaging lines. Switching at 250 Hz keeps up with moderate cycle rates; if the target passes faster than the sensor's response time (nominally 2 ms), consider a higher-frequency variant. Termination is an M12 4-pin male connector. Standard cabling (e.g., Omron XS-series cordsets) mates directly. No additional sealing washer needed if the connector is rated to the same IP class.
