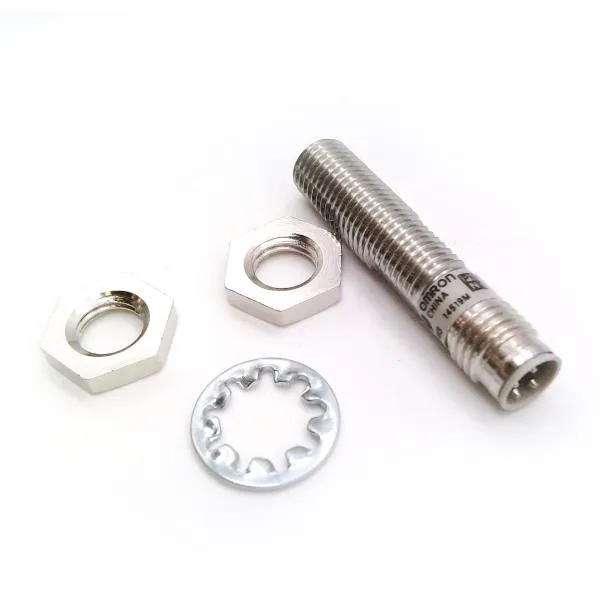

The E2EX1R5F1-M3: The Omron E2E-X1R5F1-M3 is a shielded M8 proximity switch with a 1.5 mm sensing distance. It switches normally open with a PNP output on a DC 3-wire circuit, running at standard frequency. The M8 4-pin connector means you'll need a matching pigtail or field-wireable connector — no pre-wired cable here.
E2EX1R5F1-M3 Omron E2E-X1R5F1-M3 Proximity Switch, Shielded,
MPNE2EX1R5F1-M3
Omron E2E series, proximity switch, E2EX1R5F1-M3, shielded, 1.5 mm sensing distance, DC 3-wire PNP normally open, M8 4-pin connector.
$97.66Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 1.5 mm sensing distance |
| Shielding | Shielded |
| Parameter | Value |
|---|---|
| Switching output | Normally open |
| Parameter | Value |
|---|---|
| Weight | 0.02 kgs |
| Self-Diagnosis | No self-diagnosis |
| Connection method | M8 4-pin connector |
| Oscillation frequency | Standard frequency |
| Power supply & output | DC 3-wire, PNP collector load built-in |
Product details
Frequently asked questions
Will the E2C-X1R5AH drop into a panel that was specified around the E2E-X1R5F1-M3 without rewiring?
No. The E2C-X1R5AH comes with a pre-wired 3 m cable, while the E2E-X1R5F1-M3 uses an M8 4-pin connector. Additionally, the E2C-X1R5AH is a sensor head that pairs with a separate amplifier, whereas the E2E-X1R5F1-M3 is self-contained. Wiring and mounting are incompatible without modification.
MPN
E2EX1R5F1-M3
