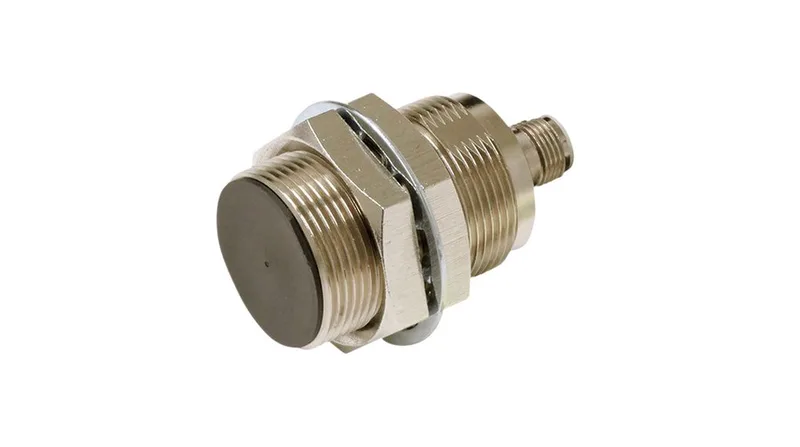

The E2EX22B1T30M1OMS: M30 flush-mount inductive proximity sensor from the E2E series, with a 22 mm sensing distance on mild steel and a PNP output. Rated for 10 to 30 VDC supply, drawing 16 mA, and can switch a load up to 100 mA. Switching frequency of 200 Hz keeps up with moderate-speed part detection on conveyors or machine tooling. Housing is brass nickel plated, IP67 rated, with an M12 connector termination – a common form factor for industrial sensor networks.
If you maintain a line with several M30 flush-mount sensors, keep a couple on the shelf – the M12 connector makes for a fast swap during a line-down event.
Mounting and wiring
Body length 58 mm, fits standard M30 threaded mounting holes. Flush mount means the sensor face is level with the mounting surface – no standoff required, but the sensing distance is measured from the face. M12 connector; PNP output, rated 10–30 VDC.
