The Omron E2EX30MB1TL302MOMS is an M30 inductive proximity sensor from the E2E-Next series, rated for non-flush mounting with a 30 mm sensing distance and a switching frequency of 100 Hz. It outputs a PNP NO signal, operates on 10–30 VDC, and sinks up to 200 mA — enough to drive a small relay or PLC input directly. The brass nickel-plated barrel and IP67/IP67G/IP69K sealing let this sensor shrug off high-pressure washdowns, which is why it’s a natural fit on a filler or capper in a beverage line where spray is constant. Temperature range from -40 °C to 85 °C covers freezer-to-steam cleaning cycles, and the 2 m cable keeps wiring simple without an extra junction box.

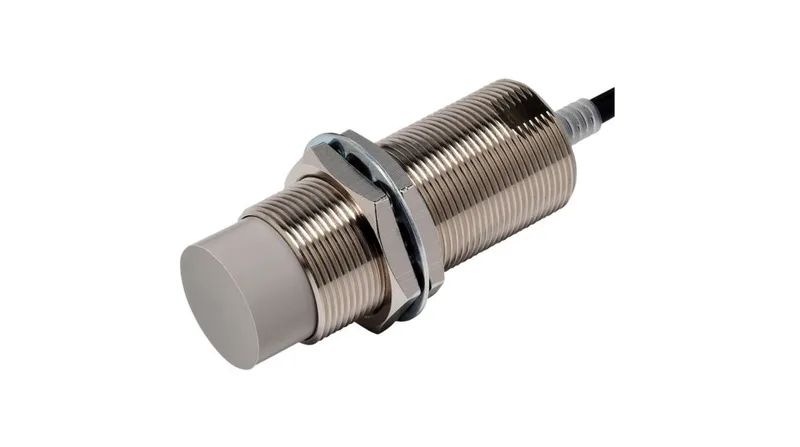

Omron E2EX30MB1TL302MOMS M30 Inductive Sensor, PNP NO, IP69K
MPNE2EX30MB1TL302MOMS
Omron E2E-Next series inductive sensor, M30 non-flush, PNP NO, 30 mm sensing distance, 200 mA load, IP67/IP67G/IP69K, 2 m cable.
$80.23Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | E2E-Next |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 30 mm |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, max. | 30 V |
| Operating voltage, min. | 10 V |
| Termination type | Cable, 2 m |
Output
| Parameter | Value |
|---|---|
| Switching frequency | 100 Hz |
| Load current | 200 mA |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | Non Flush Mount |
| Length | 82.3 mm |
| Housing material | Brass Nickel Plated |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| IP protection rating | IP67;IP67G;IP69K |
Other specifications
| Parameter | Value |
|---|---|
| Construction form | M30 |
| Current consumption | 16 mA |
| Inductive sensor output type | PNP, NO |
Product details
Frequently asked questions
What is the listed length of the E2EX30MB1TL302MOMS?
The sensor body length is 82.3 mm.
Will the E2EX30MB1TL302MOMS drop into a panel specified around the E2Q6N30MF3HOEE without rewiring?
No. The E2EX30MB1TL302MOMS is an M30 barrel with a 2 m cable, while the E2Q6N30MF3HOEE is rectangular with a terminal block. They have different mounting footprints and termination methods, so rewiring and a mechanical adapter would be required.
