The E2EX5B1T18M1OMS: The IP69K rating (alongside IP67) covers high-pressure, high-temperature wash-down — typical in dairy and beverage lines that get a daily CIP cycle. The brass nickel plated housing resists corrosion through caustic and chlorine rinses, though it's not stainless. If you need zero crevices in continuous splash zones, Omron offers a stainless steel variant in the same series; for most CIP wash-down the brass holds up fine. Switching frequency of 600 Hz and a 200 mA load current suit fast fill-level or presence detection on packaging equipment. Supply range 10–30 VDC; current consumption 16 mA. The M12 4-pin connector lets you swap a failed sensor in under a minute without rewiring a tail.

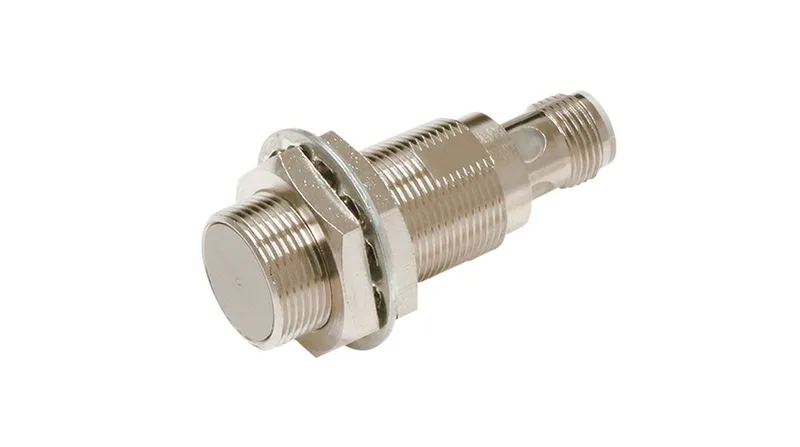

Omron E2EX5B1T18M1OMS Inductive Sensor, M18, 5mm, PNP NO, IP
MPNE2EX5B1T18M1OMS
Omron E2E-Next series inductive sensor, E2EX5B1T18M1OMS, M18 flush mount, PNP normally open, 5 mm sensing distance, 600 Hz switching frequency, IP67/IP69K, M12 4-pin connector.
$89.80 – $101.79Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | E2E-Next |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 5 mm |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, max. | 30 V |
| Operating voltage, min. | 10 V |
| Termination type | Connector, M12, 4-Pin |
Output
| Parameter | Value |
|---|---|
| Switching frequency | 600 Hz |
| Load current | 200 mA |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | Flush Mount |
| Length | 53 mm |
| Housing material | Brass Nickel Plated |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature, max. | 85 °C |
| Operating temperature, min. | -40 °C |
| IP protection rating | IP67;IP69K |
Other specifications
| Parameter | Value |
|---|---|
| Construction form | M18 |
| Current consumption | 16 mA |
| Inductive sensor output type | PNP, NO |
Product details
Frequently asked questions
What is the length of the E2EX5B1T18M1OMS?
The sensor body length is 53 mm.
MPN
E2EX5B1T18M1OMS
