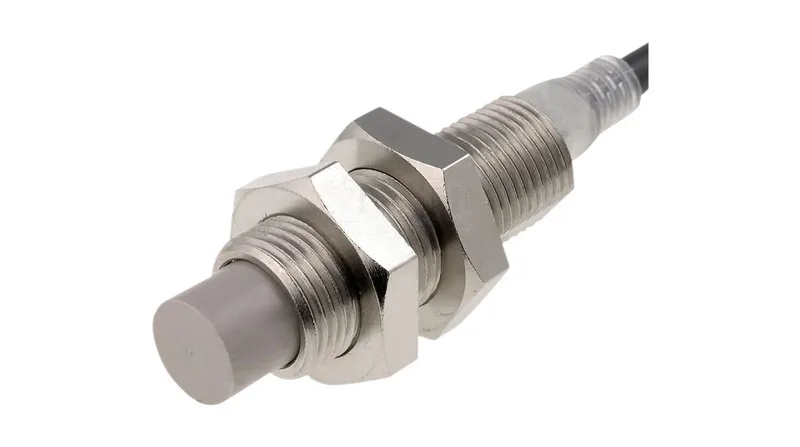

E2EX5MY12MOMS M12 Non-Flush Sensor, 5mm, NO, IP67
Omron E2E-X series, E2EX5MY12MOMS M12×1 inductive proximity sensor, non-flush mount, NO output, 5 mm sensing distance, IP67, 2 m cable.
Specifications
| Parameter | Value |
|---|---|
| Series | E2E-X |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 5 mm |
| Parameter | Value |
|---|---|
| Operating voltage, max. | 264 V |
| Operating voltage, min. | 20 V |
| Termination type | Cable, 2 m |
| Parameter | Value |
|---|---|
| Switching frequency | 25 Hz |
| Load current | 200 mA |
| Parameter | Value |
|---|---|
| Mounting type | Non Flush Mount |
| Length | 43 mm |
| Housing material | Brass |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -25 °C |
| IP protection rating | IP67 |
| Parameter | Value |
|---|---|
| Width | 21 mm |
| Height | 21 mm |
| Construction form | M12 |
| Repeat accuracy (%) | 10 % |
| Inductive sensor output type | Make Contact (NO) |
Product details
Frequently asked questions
Will the E2EX5MY12MOMS drop into a panel specified for the E2EX2Y12MOMS?
Physically, yes – same barrel diameter and length, same thread. But the E2EX5MY12MOMS is non-flush, so if the original panel had a flush-mount pocket (embeds the sensor face), this one won't sit correctly. Also check temperature: the E2EX2Y12MOMS covers -40 to 85 °C, this one only -25 to 70 °C.
What is the width of the E2EX5MY12MOMS?
21 mm, which is the standard M12 barrel width across this series.
What is the height of the E2EX5MY12MOMS?
21 mm – the same as the width; it's a cylindrical M12 sensor.
What is the closest functional second-source for the E2EX5MY12MOMS?
The E2EX2Y12MOMS is the nearest peer in the same form factor, but it's flush-mount with a 2 mm sensing distance and wider temperature range. It is not a direct solder-up swap without considering the mounting condition.
Omron E2EX5MY12MOMS is an M12 inductive proximity sensor from the E2E-X series with a brass housing, 2 m cable, NO output, 5 mm sensing distance, non-flush mount, 20–264 V supply, 200 mA load, 25 Hz switching, IP67, -25 to 70 °C range.
The closest cross-shop candidate is the E2EX2Y12MOMS – same barrel, same cable, same IP67 and frequency. Two differences change the installation: the E2EX5MY12MOMS is non-flush with 5 mm sensing versus a flush 2 mm on the sibling. If your panel already has a flush pocket or you need full temperature range (-40 °C vs -25 °C), the E2EX2Y12MOMS is a better fit. But if you need the extra reach and the sensor head can stand proud of surrounding steel, the 5 mm version gives you more margin on target distance.
Non-flush mount means you need at least the sensing distance (5 mm) of free space around the sensor face in all directions to avoid derating. The M12 barrel is 21 mm across, same as the flush siblings, so existing mounting holes swap physically. Cable is 2 m, rated for continuous flex – tie off at the connector end to avoid strain on the brass threads. IP67 handles high-pressure washdown, but seal the mating connector to maintain that rating.
