Omron E2EX5Y1M1OMS — Proximity Sensors

Omron E2EX5Y1M1OMS M18 Flush 5mm NO 264V

MPNE2EX5Y1M1OMS

Omron E2E-X series inductive sensor, M18 flush mount, 5 mm sensing distance, 300 mA load, 264 V, M12 connector, IP67.

$123.37Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2EX5Y1M1OMS — Identification
ParameterValue
SeriesE2E-X
E2EX5Y1M1OMS — Sensing
ParameterValue
Sensing distance, max.5 mm
E2EX5Y1M1OMS — Electrical
ParameterValue
Operating voltage, max.264 V
Operating voltage, min.20 V
Termination typeConnector, M12
E2EX5Y1M1OMS — Output
ParameterValue
Switching frequency25 Hz
Load current300 mA
E2EX5Y1M1OMS — Mechanical
ParameterValue
Mounting typeFlush Mount
Length53 mm
Housing materialBrass
E2EX5Y1M1OMS — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
IP protection ratingIP67

Product details

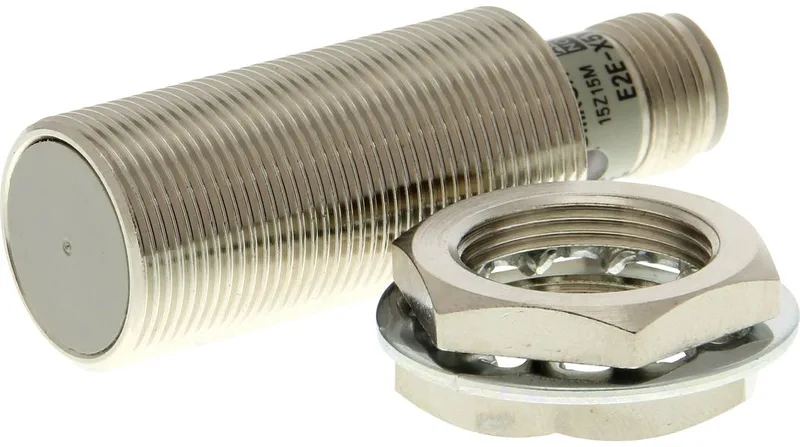

This is an Omron E2EX5Y1M1OMS inductive proximity sensor from the E2E-X family. M18 cylindrical body, flush mount – you can bury it in a metal bracket or plate without false triggers from the surrounding steel. Senses ferrous targets at 5 mm, gives you a normally open (make contact) signal up to 264 V AC/DC, 300 mA load. Brassed housing, IP67-rated, so out here in the grease it'll take a hose-down.

If you're looking at the E2EX10MY12MOMS as an alternative, understand the trade-offs: that one is non-flush (senses 10 mm but needs clearance around the head) and comes with a 2 m cable pigtail. This E2EX5Y1M1OMS is flush mount and terminates via an M12 connector – no splice box required, plug and play. Same 300 mA, same brass housing, same IP67, same 29 mm hex on the barrel. Mounting style and wiring method are the real decision: if you've got a pre-drilled M18 hole with metal around it, flush mount is the one. If you need reach and can keep metal away, go non-flush.

M12 connector, 20–264 V AC/DC, 25 Hz, 5 mm, -25 to 70 °C.

Frequently asked questions

What are the key dimensions?

Width and height are both 29 mm, length is 53 mm.
