Omron E2EX7T12MOMS — Proximity Sensors

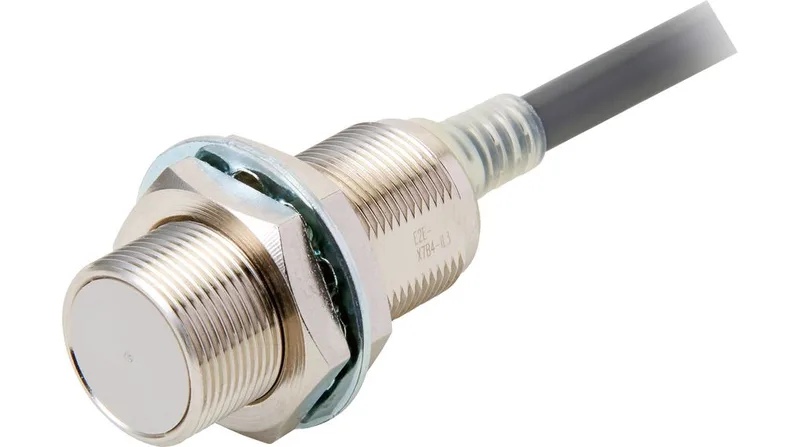

Omron E2EX7T12MOMS M18 Inductive Sensor, 7 mm, 500 Hz, Flush

MPNE2EX7T12MOMS

Omron E2E-X series, M18 flush-mount inductive proximity sensor, NO output, 7 mm sensing distance, 500 Hz switching frequency, 2 m cable, IP67, brass housing.

$104.60 – $120.30Ref. price · indicative, final on quote
Omron E2EX7T12MOMS datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

E2EX7T12MOMS — Identification
ParameterValue
SeriesE2E-X
E2EX7T12MOMS — Sensing
ParameterValue
Sensing distance, max.7 mm
E2EX7T12MOMS — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeCable, 2 m
E2EX7T12MOMS — Output
ParameterValue
Switching frequency500 Hz
Load current100 mA
E2EX7T12MOMS — Mechanical
ParameterValue
Mounting typeFlush Mount
Length43 mm
Housing materialBrass
E2EX7T12MOMS — Environmental
ParameterValue
Operating temperature, max.70 °C
Operating temperature, min.-25 °C
IP protection ratingIP67
E2EX7T12MOMS — Other specifications
ParameterValue
Width29 mm
Height29 mm
Construction formM18
Repeat accuracy (%)10 %
Inductive sensor output typeMake Contact (NO)

Product details

What you're getting

The Omron E2EX7T12MOMS is a current-production M18 flush-mount inductive sensor. It detects ferrous targets up to 7 mm away at 500 Hz, with a simple NO dry-contact output rated for 100 mA at 10–30 VDC. The brass housing is IP67, and the 2 m cable is pre-attached – no connector to buy. Body dimensions are 29 mm square by 43 mm deep. The M18 threaded body fits standard panel holes.

Another variant, E2EX8B3D182MOMS, offers 8 mm range with both NO and NC contacts and a wider temperature range (-40 to +85 °C) but needs 20 mA supply current. For standard indoor machine build, the 7 mm part keeps the circuit simple and the supply budget tight.

Mounting & wiring note

Flush mount allows the sensor face to be level with the mounting surface. The M18 body has a 2 m cable. The output is rated for 100 mA. Repeat accuracy is 10 % of the 7 mm sensing distance.

Frequently asked questions

What is the width and height of E2EX7T12MOMS?

Width and height are both 29 mm. The body is a 29 mm square, standard for M18 sensors, with a length of 43 mm behind the panel.

Will E2EX7T12MOMS drop into a panel specified around E2EX12B1T182MOMS?

The M18 mounting hole and electrical connections are the same, so it will mechanically fit in the panel hole and wire identically. However, the 43 mm body is 12 mm shorter than the 55 mm E2EX12B1T182MOMS – this may leave extra space behind the panel but does not affect function. If the panel was designed for the longer sensor, there is no obstruction to fitting the shorter one.
