Integrator quick-look

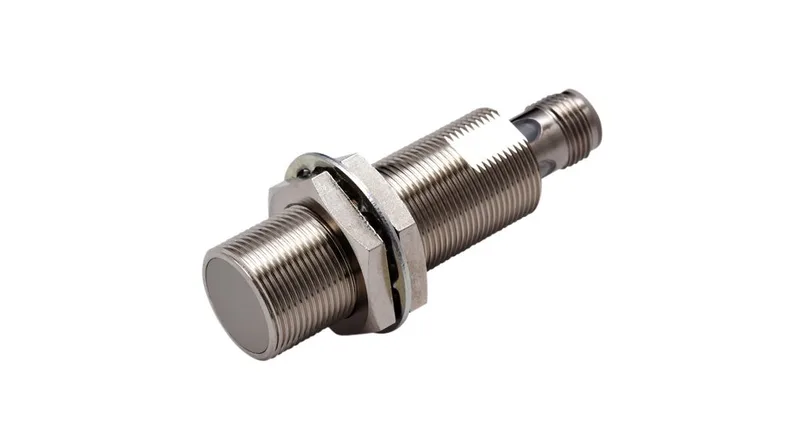

The E2EX8B1TL18M1OMS: M18 flush-mount inductive sensor from the E2E-Next series. Output is PNP normally open, 200 mA load capacity, switching at 500 Hz. Supply range 10–30 V, draws 16 mA no-load. Sensing distance is 8 mm on mild steel. Brass nickel-plated barrel, M12 4-pin connector. IP67/IP69K rated — handles washdown and high-pressure cleaning without drama. Active lifecycle stage with no obsolescence clock.
How it compares to the M12 E2A sibling (E2AM12KS04M1B14OMS)
Same PNP NO output, same M12 4-pin connector, same 200 mA load. Key differences: the E2E-Next runs a 75 mm long M18 barrel versus the E2A’s 48 mm M12 barrel — so existing panel drilling for an M12 sensor won't take this without a larger hole or adapter bracket. Sensing distance is 8 mm here, double the 4 mm of the M12 peer. Switching frequency is 500 Hz vs 1 kHz — the M12 sibling is faster, so if your target rate is high, that older series wins. Temperature range is wider on this one: -40 to 85 °C, beating the M12's -40 to 70 °C. Current consumption is 16 mA vs 10 mA — not a dealbreaker for most backplanes, but worth noting if you're counting power on a long chain. The brass nickel plating on this E2E-Next is the same material as the E2A; both are IP67/IP69K. For a new design that needs longer range and higher temperature headroom, this M18 sensor is the right pick. For a drop-in replacement on a panel wired for M12, the M12 peer keeps the mounting hole and bracket the same.
