Omron E2F-X10E1 — Proximity Sensors

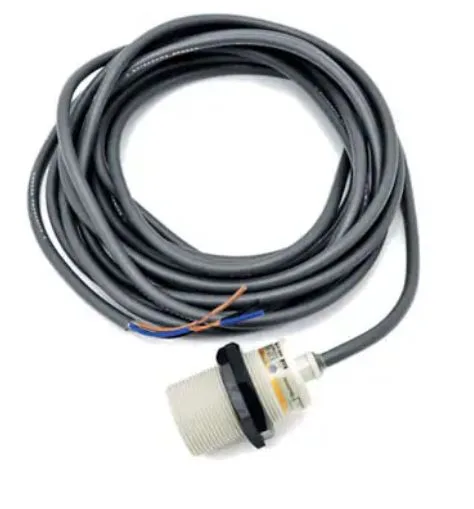

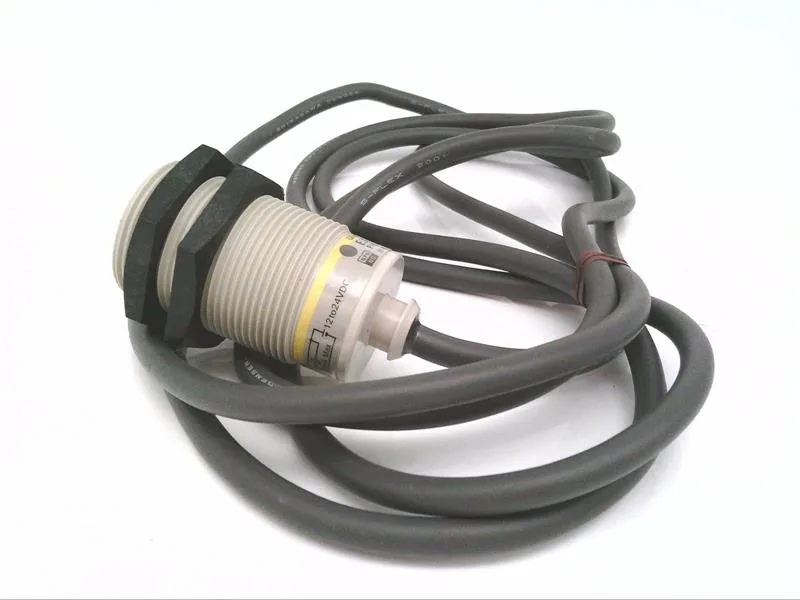

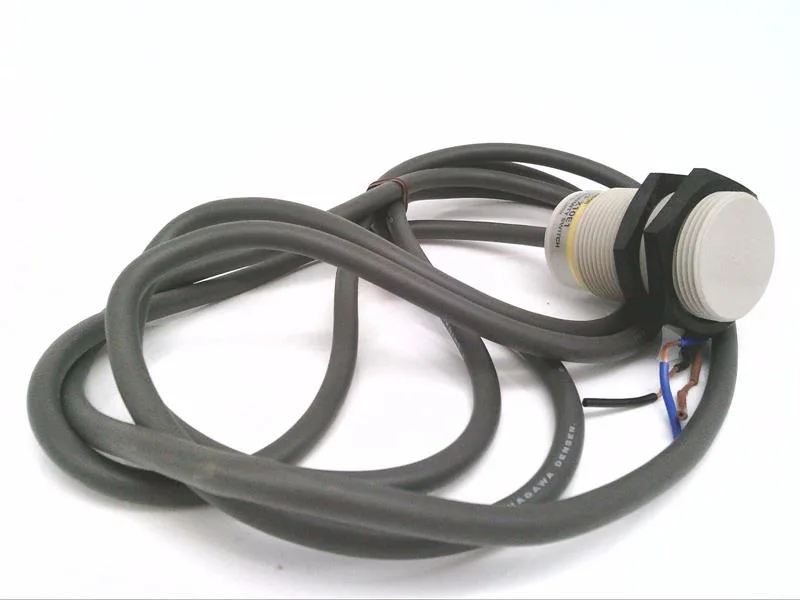

Omron E2F-X10E1 Inductive Proximity Sensor, M30, 10mm, NPN

MPNE2F-X10E1

Omron E2F series, inductive cylindrical proximity sensor, shielded, M30 threaded, NPN NO, 10-30V DC, 10 mm sensing distance, 2 m cable, IP68, water-resistant.

$178.99 – $216.79Ref. price · indicative, final on quote
Omron E2F-X10E1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2F-X10E1 — Identification
ParameterValue
SeriesE2F
E2F-X10E1 — Sensing
ParameterValue
Sensing distance, max. (alt.)10 mm
Sensing methodInductive
Sensing-face shieldingShielded
E2F-X10E1 — Electrical
ParameterValue
Supply voltageNot Rated ; 10-30V DC
AC supply voltage ratingNot Rated
DC supply voltage rating10-30V DC
Number of wires3
Electrical connectionBare Wire
Electrical installation typePrewired Cable
E2F-X10E1 — Output
ParameterValue
Output circuit contact formNO
Output circuit typeNPN
Includes indicator lightsIndicator Lights Included
Output circuitNPN
E2F-X10E1 — Mechanical
ParameterValue
Body styleCylindrical
Overall height57 mm
Body materialPolyarylate Resin
E2F-X10E1 — Environmental
ParameterValue
Operating temperature, max. (alt.)158 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP68
E2F-X10E1 — Approvals
ParameterValue
Standards / certificationsCCC; CE; CSA; cURus

Product details

The E2F-X10E1: M30 threaded stainless steel barrel, 57 mm overall height. Shielded sensing face – mounted flush in steel triggers rated 10 mm range. IP68 seal holds up under washdown or light submersion; NEMA 4/6 covers hosedown and corrosive atmospheres. Swap it into panels drilled for M30 with 10-30 VDC NPN wiring.

Sensing range and output

Shielded inductive proximity switch with a 10 mm maximum sensing distance on a standard target. Output is NPN normally open – pulls the load down to 200 mA when metal is present. Supply anything from 10 to 30 V DC; three-wire termination bare-wired at 2 m. No PNP variant in this code; order the E2F-X10E1 for a sinking PLC input.

Frequently asked questions

What is the sensing range and output type of the Omron E2F-X10E1?

Shielded inductive, 10 mm maximum sensing distance, NPN normally open output.

Is the E2F-X10E1 PNP or NPN, and what is the wiring for a 3-wire DC PLC input?

NPN output – the load connects between the supply positive and the output transistor. For a sinking PLC input, common the sensor's blue (0V) to the PLC's common, brown (+V) to 10-30 VDC, and black (output) to the input card.

Does the Omron E2F-X10E1 carry a SIL or functional safety certification?

Not per the evidence – it lists CCC, CE, CSA, cURus but no SIL rating. For safety-rated applications use a dedicated safe proximity sensor.

Will E2F-X10E1 drop into a panel that was specified around E2FX5E1 without rewiring?

No – the mounting hole differs. E2F-X10E1 uses M30 thread; E2FX5E1 uses M18. Rewiring is the same (3-wire NPN), but mechanical change is required.
