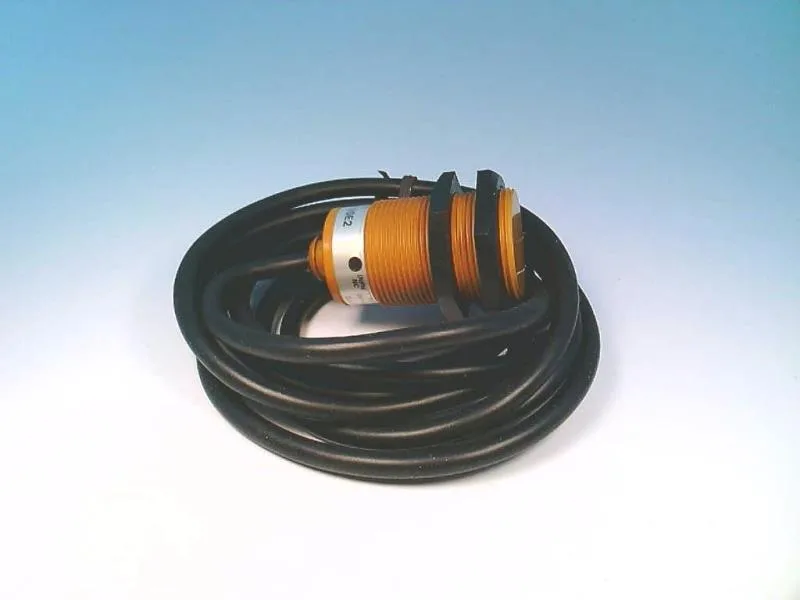

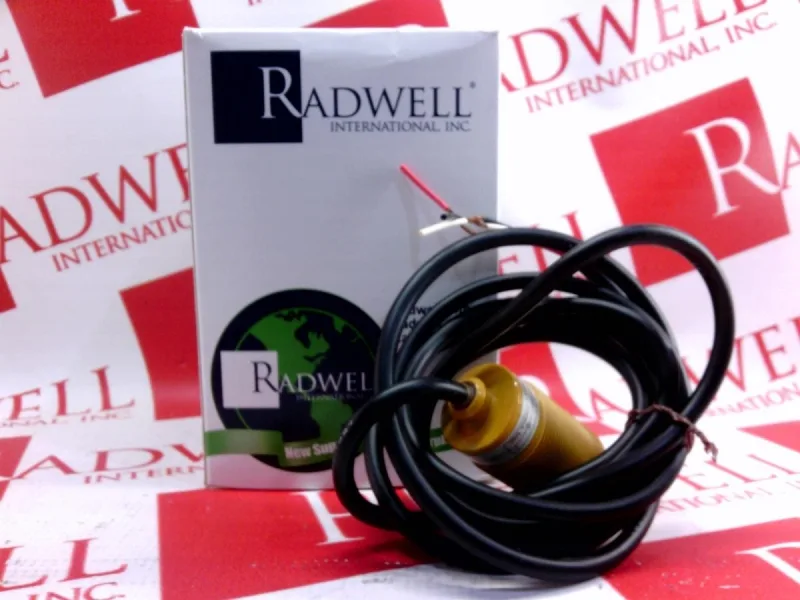

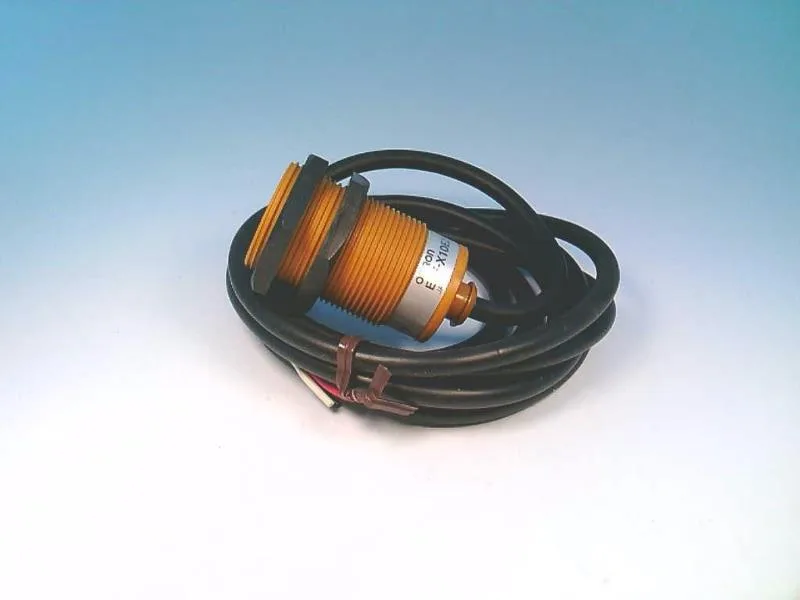

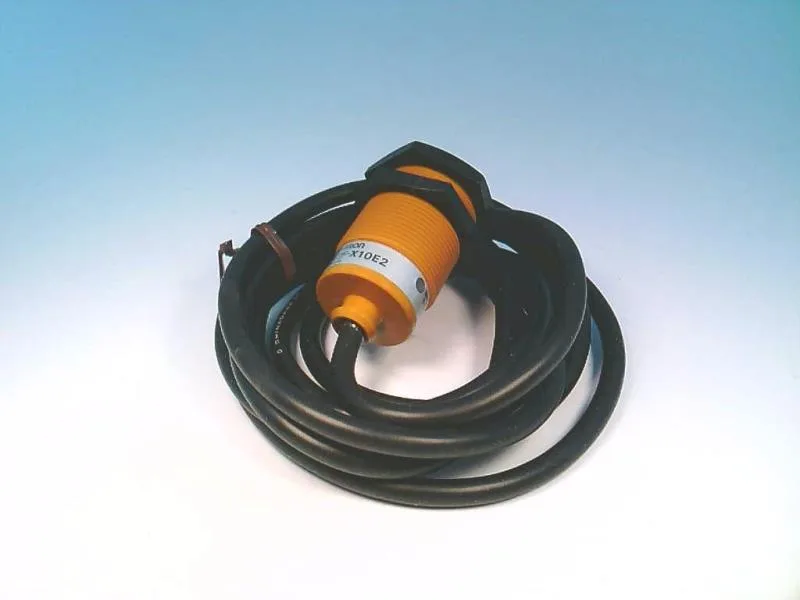

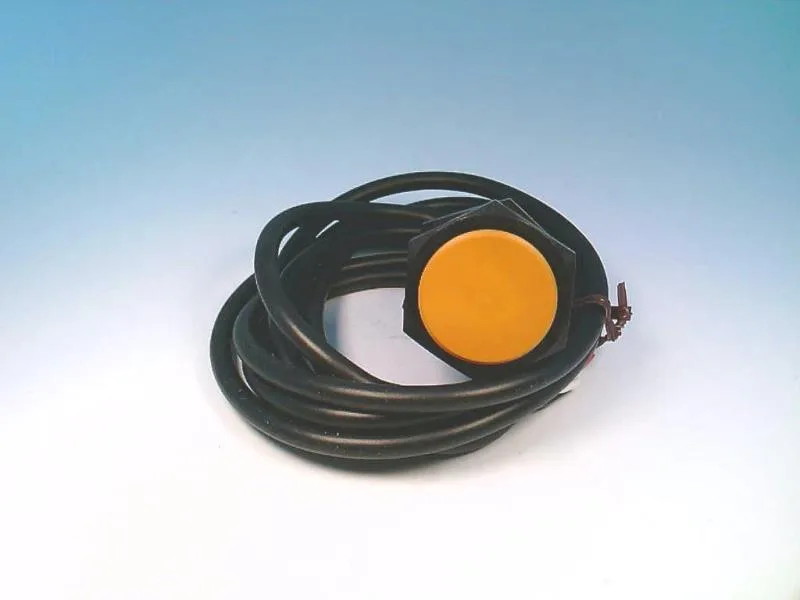

This Omron E2F-X10E2 is a shielded M30 inductive proximity sensor that detects ferrous targets at 10mm. NPN-NC output, normally closed, wired 3-wire DC. LED indicator shows target present. Supply voltage 10–30 VDC, 400Hz switching speed. IP68 means it handles submersion – line washdown or outdoor enclosures fit fine.
Omron E2F-X10E2 Inductive Sensor, M30, 10mm, NPN-NC, IP68
MPNE2F-X10E2
Omron E2F series inductive proximity sensor, E2F-X10E2, M30 shielded, NPN-NC 3-wire, 10mm sensing range, IP68, 400Hz response.
$212.14Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | E2F |
| Parameter | Value |
|---|---|
| Sensing distance | 0.394" (10mm) |
| Shielding | Shielded |
| Parameter | Value |
|---|---|
| Operating temperature range | -25°C ~ 70°C |
| Parameter | Value |
|---|---|
| Case | Cylinder, Threaded - M30 |
| Indicator | LED |
| Output signal | NPN-NC, 3-Wire |
| Sensor type | Inductive |
| Material - body | Plastic |
| Supply voltage | 10V ~ 30V |
| Termination style | Cable Leads |
| IP rating | IP68 |
| Response frequency | 400Hz |
Product details
Frequently asked questions
What is the E2F-X10E2's housing size?
The case is a threaded M30 cylinder, 30mm diameter, shielded.
Can the E2FQ-X2E1 replace the E2F-X10E2?
No. The E2FQ-X2E1 is an M12 body with only 2mm sensing range and NPN-NO output. Different thread diameter and output state mean it won't drop into the same hole or wiring configuration.
What series does the E2F-X10E2 belong to?
It's part of the Omron E2F series of inductive proximity sensors.
MPN
E2F-X10E2
