Omron E2K-X15ME1 — Proximity Sensors

Omron E2K-X15ME1 Capacitive Proximity Sensor, 30mm, NPN, 15m

MPNE2K-X15ME1

Omron E2K-X series, Capacitive Cylindrical Proximity Sensor, E2K-X15ME1, NPN, NO, 30 mm dia., 15 mm max sensing distance, 10-30 VDC, 2 m cable, IP66.

$79.53 – $195.99Ref. price · indicative, final on quote
Omron E2K-X15ME1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E2K-X15ME1 — Identification
ParameterValue
SeriesE2K-X
E2K-X15ME1 — Sensing
ParameterValue
Sensing distance, max. (alt.)15 mm
Sensing methodCapacitive
Sensing-face shieldingUnshielded
E2K-X15ME1 — Electrical
ParameterValue
Supply voltageNot Rated ; 10-30V DC
AC supply voltage ratingNot Rated
DC supply voltage rating10-30V DC
Number of wires3
Electrical connectionBare Wire
Electrical installation typePrewired Cable
E2K-X15ME1 — Output
ParameterValue
Output circuit contact formNO
Output circuit typeNPN
Includes indicator lightsIndicator Lights Included
Output circuitNPN
E2K-X15ME1 — Mechanical
ParameterValue
Body styleCylindrical
Body materialPlastic
E2K-X15ME1 — Environmental
ParameterValue
Operating temperature, max. (alt.)131 °F
Operating temperature, min. (alt.)-13 °F
IP ratingIP66
E2K-X15ME1 — Approvals
ParameterValue
Standards / certificationsCCC; CE

Product details

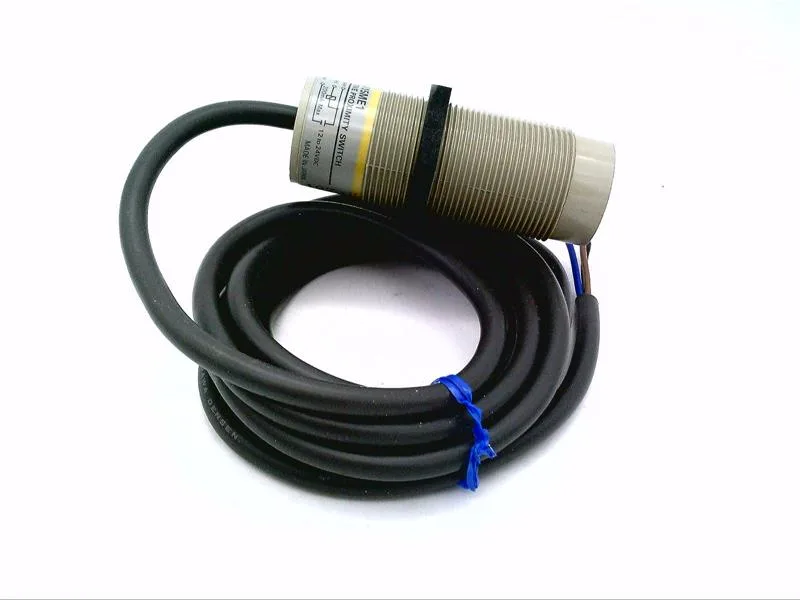

The Omron E2K-X15ME1 is a 30 mm diameter capacitive proximity sensor in the E2K-X series. It detects non-metallic objects up to 15 mm away with no sensitivity adjustment needed — the detection range is fixed at the factory, so there is no trimmer to set. It uses a 10–30 VDC supply and provides an NPN output, normally open contact form, rated for 200 mA load. Housed in a plastic cylindrical body with an integral 2-meter prewired cable, bare wire termination. Rated IP66 and NEMA 1, 4, 12, 13 for washdown and indoor use. Complies with CCC and CE standards. Indicator lights are included for output status.

Frequently asked questions

What compliance documentation is available for the E2K-X15ME1?

The sensor is listed with CCC and CE certifications. No RoHS, REACH, or UL marks appear in the specifications. Documentation for the listed standards can be provided upon request.
