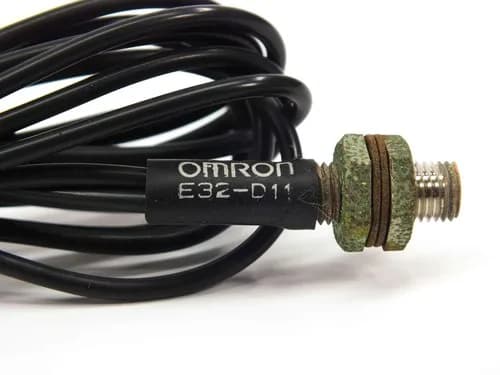

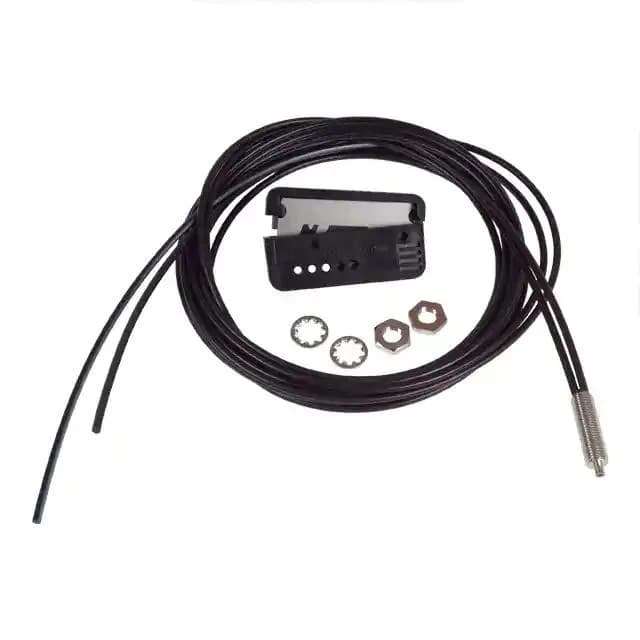

The Omron E32-D11 is a diffuse reflective fiber optic sensor with a threaded M6 head and a 5.2 mm diameter sensing tip. It uses a flexible fiber construction that routes around tight bends in machine frames or cable tracks, and the diffuse reflective method detects objects directly without a separate reflector. Rated sensing distance is 520 mm, which covers most presence/absence checks on conveyor lines or part-positioning stations. The 2 m cable length gives enough reach to a nearby amplifier without a junction box.
Omron E32-D11 Diffuse Reflective Fiber Sensor, M6 Threaded,
MPNE32-D11
Omron E32-D11 diffuse reflective fiber sensor, M6 threaded, flexible fiber, 2 m cable, 520 mm sensing distance.
$77.00 – $168.02Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
Sensing
| Parameter | Value |
|---|---|
| Sensing method | Diffuse reflective |
| Sensing distance | 520 mm |
Other specifications
| Parameter | Value |
|---|---|
| Dimensions | M6 |
| Shape | Threaded |
| Features | Flexible fiber |
| Cable length | 2 m |
| Model number | E32-D11 2M |
| Diameter sensor | 5.2 mm |
| Operating temperature | -40-70 °C |
Product details
Frequently asked questions
What is E32-D11's listed size (M6) on this component line?
The E32-D11 has a threaded M6 mounting size, with a sensor diameter of 5.2 mm.
What is E32-D11's listed shape (Threaded) on this component line?
The E32-D11 is a threaded shape, designed for direct mounting into a tapped hole or through a mounting bracket with an M6 nut.
MPN
E32-D11
