Cable basics and sensing performance

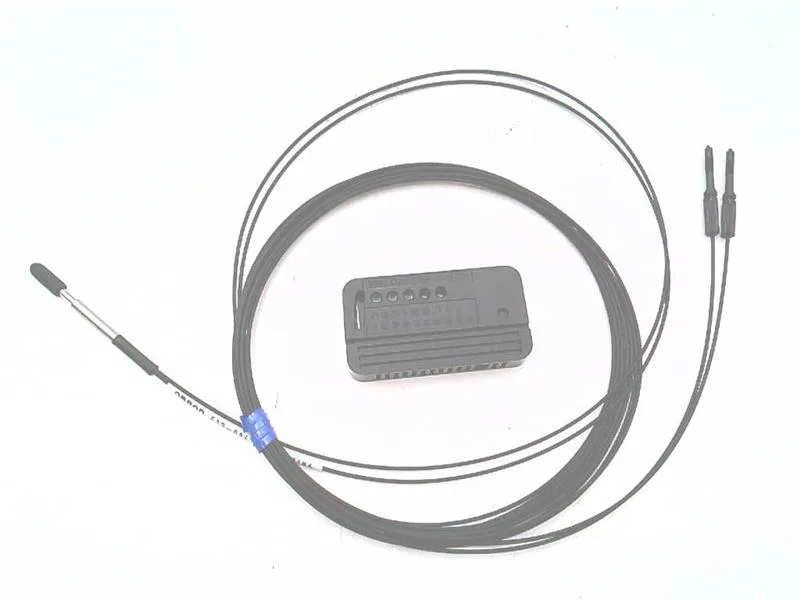

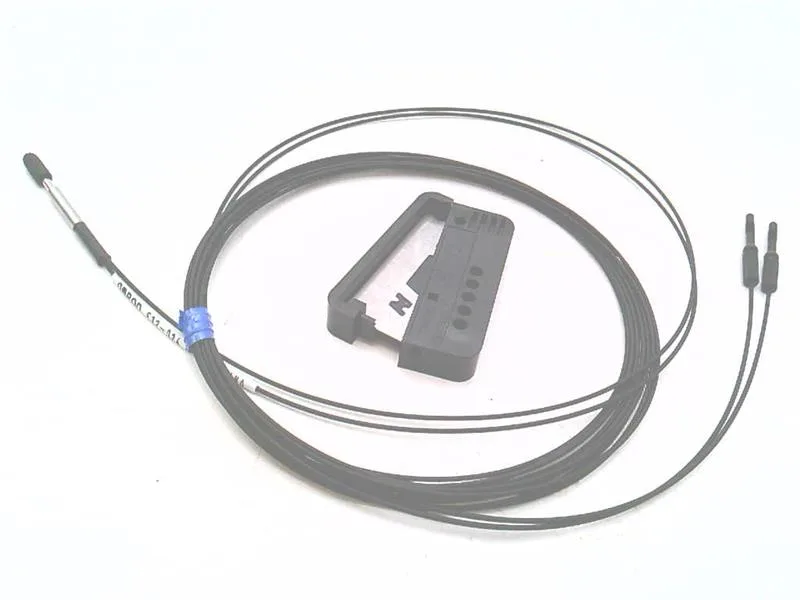

The Omron E32-D24 is a diffuse plastic fiber optic cable, 2 m long, with a 5/64 in diameter cylindrical pin tip. Cable diameter is 2 mm, beam diameter is 2 mm, fiber core is plastic, and sheath is polyethylene. Sensing range is 9 cm maximum in diffuse mode, and the minimum detectable object is 0.005 mm diameter, suited for detecting very small parts in tight spaces. Operating temperature range is -40 °F to 158 °F, covering most industrial environments. Sensing orientation is side-view, meaning the fiber tip is bent to emit and receive light from the side.
Lifecycle and sourcing note
This part is at the mature stage of its lifecycle, indicating stable production and long-term availability. It carries IEC and UL Listing compliance markers. The cable is quoted to order against an RFQ; contact for current lead time.
