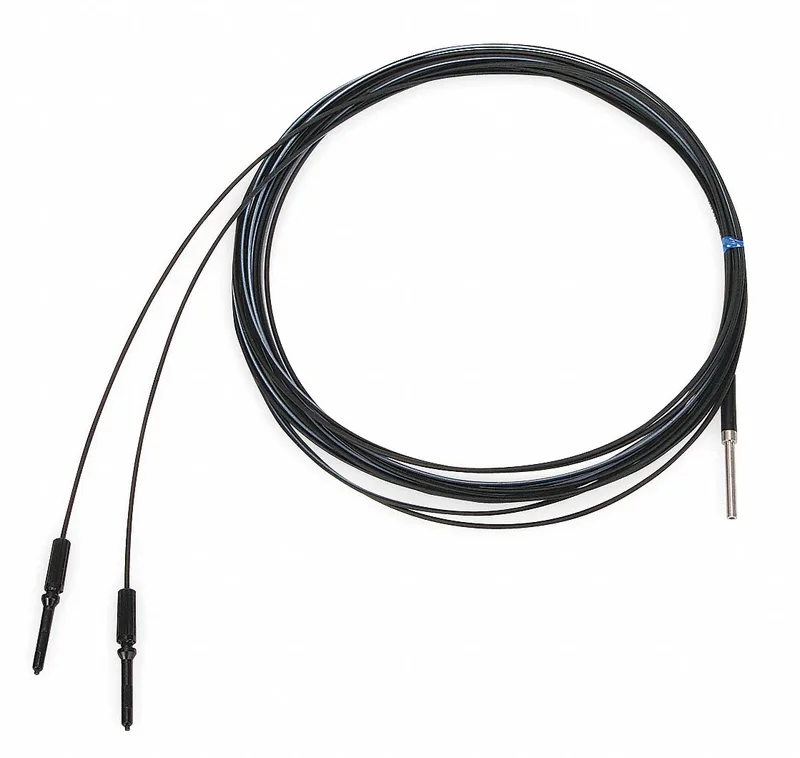

The Omron E32-D32 is a coaxial fiber optic cable designed for diffuse sensing, with a 22 cm maximum sensing distance and a 2 mm beam diameter. It uses a plastic fiber core (PVC sheathed) and terminates in a 5/64 in diameter cylinder pin at one end, fitting typical fiber amplifier units. The 2 m cable length gives you enough reach to the amplifier without excess coiling. What matters for application fit: the minimum detectable object is 0.005 mm, so this cable resolves very fine targets – think pin holes, small contaminants, or fine wire presence. The diffuse sensing method means you don't pair it with a separate reflector; it works off the target's own reflectivity. Operating temperature spans -40°F to 158°F, so it handles most indoor industrial environments without issue. Compliance: listed to both IEC and UL standards, which keeps it straightforward for global panels and inspections.
Omron E32-D32 Coaxial Fiber Optic Cable, Diffuse, 2m, 22cm R
MPNE32-D32
Omron E32-D32 Coaxial Fiber Optic Cable, Diffuse sensing, 5/64 in Cylinder Pin, 2 m cable, 22 cm range.
$31.86Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing method | Diffuse |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 158 °F |
| Parameter | Value |
|---|---|
| Standards / approvals | IEC; UL Listed |
| Parameter | Value |
|---|---|
| Display qty | 1 |
| Cable length | 2 m |
| Product type | Coaxial Fiber Optic Cable |
| Beam diameter | 2 mm |
| Cable diameter | 2 mm |
| Cable head type | 5/64 in dia Cylinder Pin |
| Sheath material | PVC |
| Display sell UOM | EA |
| Fiber material core | Plastic |
| Compatible product type | Fiber Optic Sensors |
| Sensing distance - maximum | 22 cm |
| Operating temperature - minimum | -40 °F |
| Sensing surface orientation - NEW | Top View |
| Minimum detectable object diameter | 0.005 mm |
Product details
Frequently asked questions
What compliance standards does the E32-D32 meet?
It is listed to IEC and UL standards, providing documentation for global equipment approvals.
What is the minimum detectable object size?
0.005 mm. This enables detection of very small targets such as pin holes, fine wires, or particulates in precision applications.
What is the maximum sensing distance?
22 cm. This is the rated maximum for diffuse mode with the plastic fiber and coaxial construction.
MPN
E32-D32
