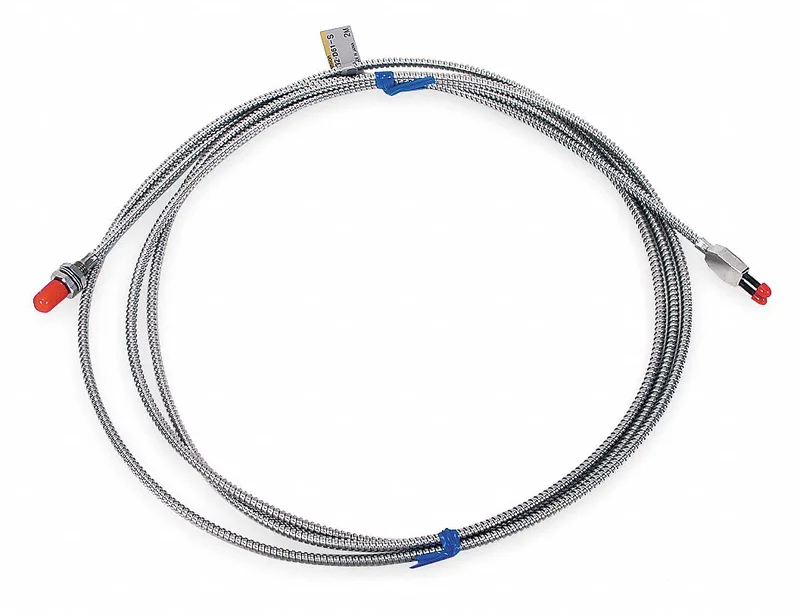

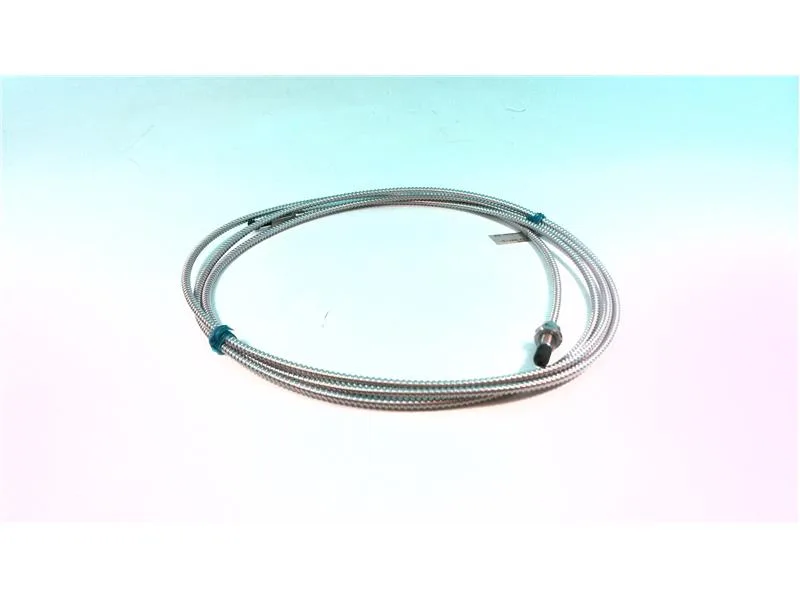

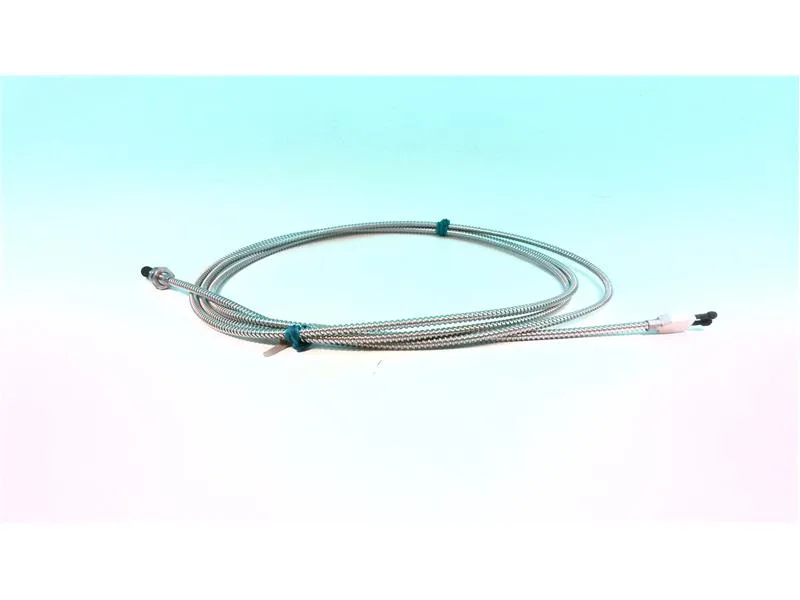

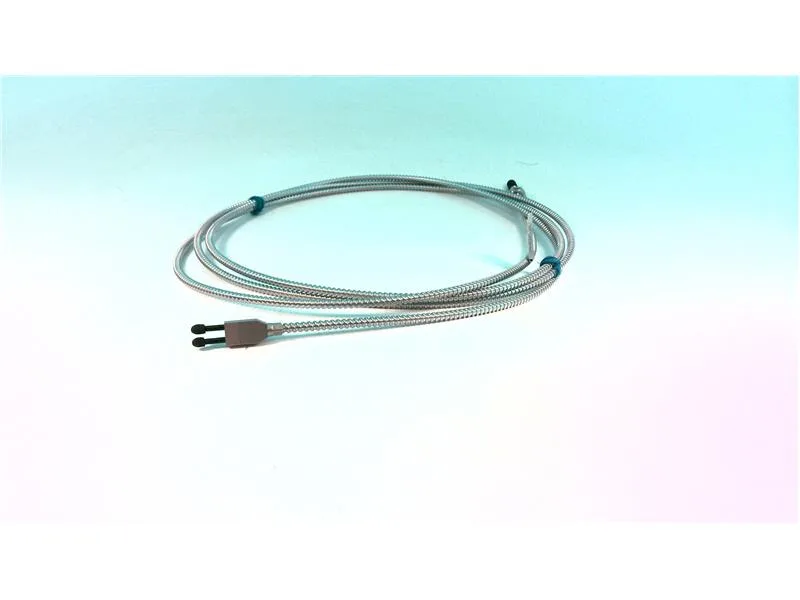

Omron E32-D61S High Temperature Fiber Optic Cable, Diffuse, M6 Screw, 2m Cable, SUS Sheath, 1mm Beam, 63cm Max Range, -76°F to 662°F, IEC & UL Listed.
| Parameter | Value |
|---|---|
| Sensing method | Diffuse |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 662 °F |
| Parameter | Value |
|---|---|
| Standards / approvals | IEC; UL Listed |
| Parameter | Value |
|---|---|
| Display qty | 1 |
| Cable length | 2 m |
| Product type | High Temperature Fiber Optic Cable |
| Beam diameter | 1 mm |
| Cable diameter | 4 mm |
| Cable head type | M6 Screw |
| Sheath material | SUS |
| Display sell UOM | EA |
| Fiber material core | Glass |
| Compatible product type | Fiber Optic Sensors |
| Sensing distance - maximum | 63 cm |
| Operating temperature - minimum | -76 °F |
| Minimum detectable object diameter | 0.005 mm |
The Omron E32-D61S is a high temperature diffuse fiber optic cable — SUS sheathed, M6 screw head, 2 m cable length. Rated for -76°F to 662°F ambient, it goes where plastic fibers soften: ovens, kilns, autoclaves. The 1 mm beam diameter and 0.005 mm minimum detectable object give it fine resolution for small part presence or edge detection. Maximum sensing distance is 63 cm in diffuse mode, so keep the target close.
It carries both IEC and UL listing marks.
No — the E32-D61S is diffuse, while the E32T61S requires separate emitter and receiver fibers. The mounting thread is also M6 vs M4 on the T61S, so the fiber entry point would need adaption or drilling.
