Omron E3AS-F1500IMN M3 — Photoelectric Sensors

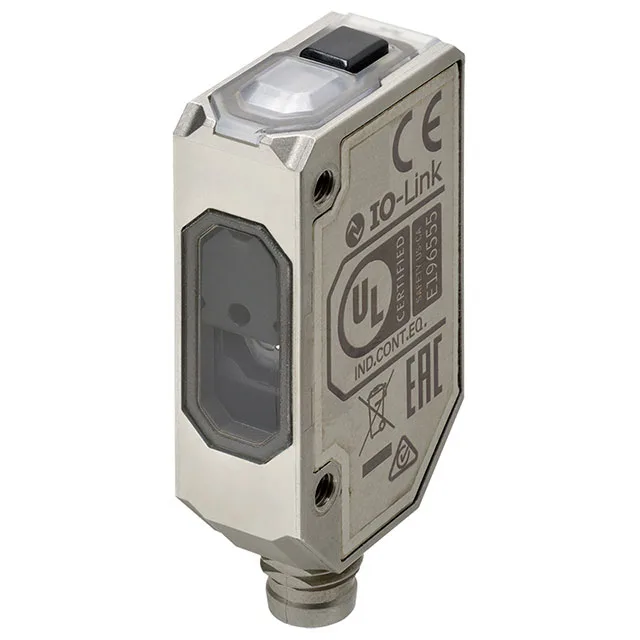

E3AS-F1500IMN M3 Photoelectric Sensor, NPN, IP69K, 1.5m

MPNE3AS-F1500IMN M3

Omron E3AS-F series time-of-flight reflective photoelectric sensor, E3AS-F1500IMN M3, NPN output, 10-30 VDC, 50 mm to 1.5 m range, IP67/IP69K, connector, box packaging.

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3AS-F1500IMN M3 — Identification
ParameterValue
SeriesE3AS-F
E3AS-F1500IMN M3 — Sensing
ParameterValue
Sensing methodReflective
Sensing distance1.969" ~ 59.055" (50mm ~ 1.5m)
Response time150ms
Light sourceInfrared (940nm)
E3AS-F1500IMN M3 — Output
ParameterValue
Output configurationNPN
E3AS-F1500IMN M3 — Environmental
ParameterValue
Operating temperature range-20°C ~ 55°C
E3AS-F1500IMN M3 — Other specifications
ParameterValue
Supply voltage10V ~ 30V
Connection methodConnector
IP ratingIP67, IP69K

Product details

E3AS-F1500IMN M3 is a time-of-flight photoelectric sensor from the E3AS-F series. It bounces infrared at 940 nm off a target and measures return time to figure distance—so it’s reflective, not through-beam or retroreflective. NPN output, runs on 10 to 30 VDC. Sensing range is 50 mm out to 1.5 m, but that far end depends on target reflectivity; bright white will hit 1.5 m, a matte black drum maybe half that. Connector style means you supply the cable pair.

The housing carries both IP67 and IP69K ratings. Response time is 150ms. Operating temperature -20°C to 55°C. The IP69K rating and the plastic housing mean it can take a cold warehouse or a hot wash bay, but you'll want to derate ambient if it's inside a sealed enclosure next to hot drives.

Frequently asked questions

What series is the E3AS-F1500IMN M3 part of?

It is part of the Omron E3AS-F series of time-of-flight reflective photoelectric sensors.

What packaging does the E3AS-F1500IMN M3 come in?

The standard packaging for this sensor is a box, not bulk or individual polybag.

MPN
E3AS-F1500IMN M3
