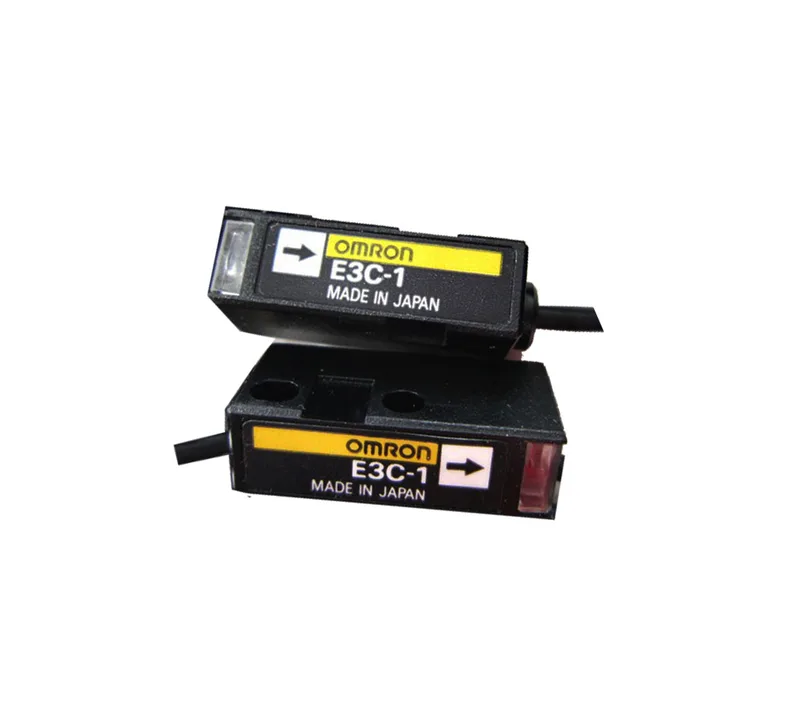

OMRON E3C-1 Compact Head Amplifier-separated Photoelectric Sensor * SAME DAY DELIVERY - 1 UNIT ONLY*
$37.00 – $95.25Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Sensing distance | 1 m |
| Parameter | Value |
|---|---|
| Dimensions | 2.5 x 0.8 x 1.2 cm |
| Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
| Connection method | Pre-wired models (standard length: 2 m) |
| Dielectric strength | 500 VAC at 50/60 Hz for 1 minute |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Ambient humidity range | Operating/Storage: 35% to 85%RH (with no condensation) |
| Standard sensing object | Opaque, 4-mm dia. min. |
| Ambient temperature range | Operating/Storage: -25 to 70°C (with no icing or condensation) |
| Light source (wavelength) | Infrared LED (950 nm) |
| Ambient illuminance (Receiver side) | Incandescent lamp: 3,000 lx max., Sunlight 10,000 lx max |
MPN
E3C-1
