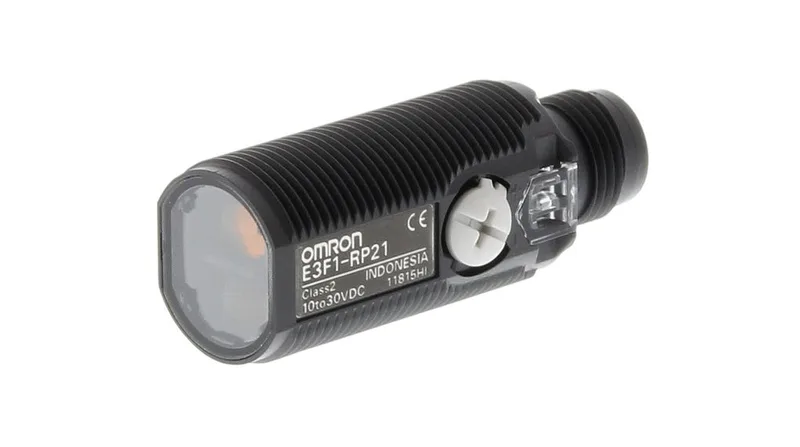

Omron E3F1 Series, Retro-Reflective Photoelectric Sensor, PNP, 3 m Range, M12 Connector, IP66.
Omron E3F1RP21OMI Retro-Reflective Sensor, PNP, 3m, M12
MPNE3F1RP21OMI
Omron E3F1 Series, Retro-Reflective Photoelectric Sensor, PNP, 3 m Range, M12 Connector, IP66.
$68.49 – $85.36Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | E3F1 |
| Sensor type | Retro-Reflective Sensor |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 3 m |
| Sensing distance, min. | 100 mm |
| Response time | 500 us |
| Light type | LED, Red |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
Output
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 100 mA |
| Switching type | Light-ON / Dark-ON |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, 4-Pin |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP66 |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
Mechanical
| Parameter | Value |
|---|---|
| Length | 45 mm |
Product details
Frequently asked questions
Will the E3F1RP21OMI drop into a panel specified for the E3ZMB812MOMS without rewiring?
Not directly — the E3F1RP21OMI uses an M12 connector, while the E3ZMB812MOMS has a 2 m cable. The electrical wiring is the same (PNP, 10-30 VDC, 100 mA), but you will need a mating M12 cable assembly or adapt the termination.
What are the key ratings of the E3F1RP21OMI?
Retro-reflective PNP output, 3 m sensing range, 500 µs response time, 100 mA load, IP66, operating voltage 10-30 VDC, red LED light source, M12 4-pin connector, temperature range -25°C to 55°C.
MPN
E3F1RP21OMI
