The E3F1TP21OMI: Operates on 10–30 VDC, switches loads up to 100 mA, with selectable Light-ON or Dark-ON operation via the connector pinout. The M12 4-pin connector and IP66 rating suit washdown zones or outdoor panels. Through-beam design achieves maximum range and immunity to target colour or surface, but requires separate emitter and receiver alignment — ideal for conveyor gaps, tall doorways, or long-axis inspection.

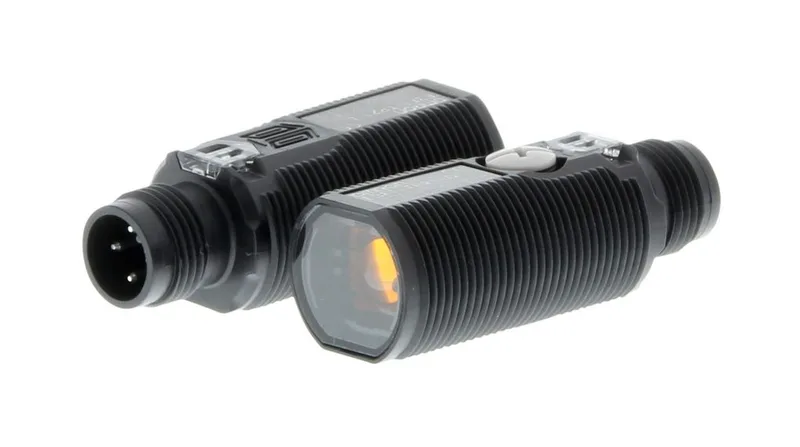

Omron E3F1TP21OMI Through-Beam Sensor, PNP, 15m
MPNE3F1TP21OMI
Omron E3F1 series, Through Beam Photoelectric Sensor, PNP, 15 m, M12 connector, IP66.
$79.54 – $89.18Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | E3F1 |
| Sensor type | Through Beam |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 15 m |
| Response time | 500 us |
| Light type | LED, Red |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
Output
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 100 mA |
| Switching type | Light-ON / Dark-ON |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, 4-Pin |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP66 |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
Mechanical
| Parameter | Value |
|---|---|
| Length | 45 mm |
Product details
Frequently asked questions
When sourcing E3F1TP21OMI, what is the closest functional alternative?
The E3F1RP21OMI is a retro-reflective sibling sharing the same electrical and environmental specs but with 3 m range (vs 15 m) and requires a reflector instead of a separate receiver.
What is the length of the E3F1TP21OMI?
It has a length of 45 mm.
Will E3F1TP21OMI drop into a panel designed for E3F1RP21OMI without rewiring?
No. The through-beam pair requires two mounting points and clear line-of-sight, unlike the retro-reflective single-body sensor. The M12 connector and pinout are compatible, but mounting and alignment differ.
MPN
E3F1TP21OMI
