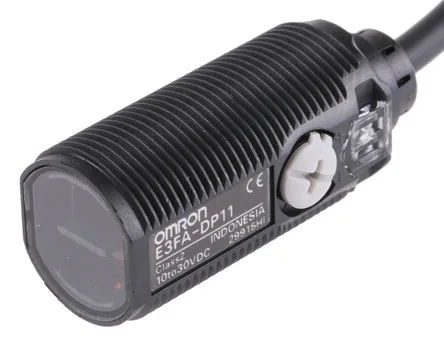

The Omron E3FA-DP112M is a cylindrical diffuse photoelectric sensor from the E3FA series, delivering a maximum sensing distance of 100 mm on a 75 mm opaque target. Output is PNP, 100 mA load capability, with selectable light-on/dark-on switching. Response time is 0.5 ms. Housed in an M18 threaded plastic body rated IP67 and IP69K for high-pressure washdown environments. Supply range 10–30 V DC, prewired with a 2 m cable.
Comparison vs E3FA-DP122M
Built-in output reverse polarity protection, short circuit protection, and power supply reverse polarity protection — no external diode clamp or fuse needed on the output line. CE marked for the regulated markets.
