Omron E3FA-DP21 Diffuse PNP Sensor 100mm IP69K

Name: E3FA-DP21
Brand: Omron
SKU: E3FA-DP21
Availability: LimitedAvailability
Author: Bottling Bianca

MPNE3FA-DP21

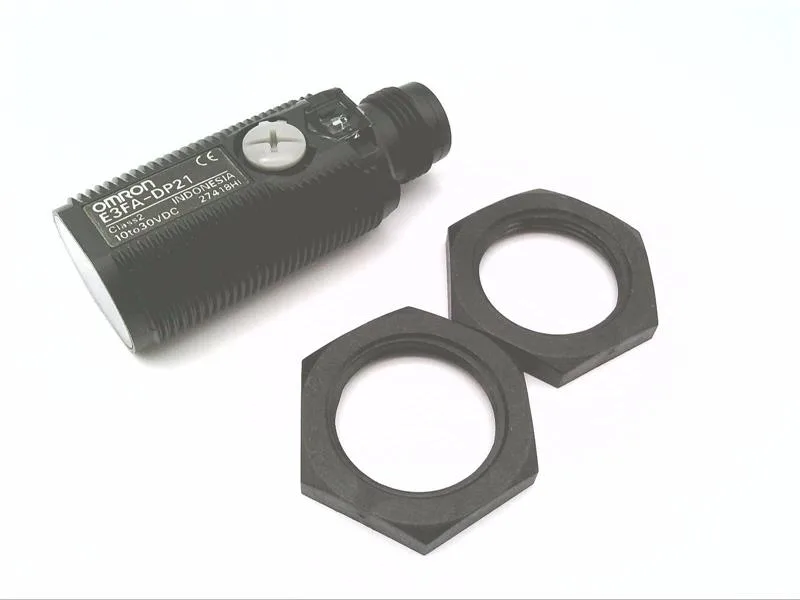

Omron E3FA series, M18 threaded diffuse photoelectric sensor, PNP output, 100 mm sensing distance, M12 connector, IP67/IP69K.

$31.52Ref. price · indicative, final on quote

Add to RFQ

Omron E3FA-DP21 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3FA-DP21 — Identification
Parameter	Value
Series	E3FA

E3FA-DP21 — Sensing
Parameter	Value
Sensing method	Diffuse
Response time	0.5 msec

E3FA-DP21 — Electrical
Parameter	Value
Supply voltage	10-30V DC

E3FA-DP21 — Environmental
Parameter	Value
IP rating	IP67; IP69K
Operating temperature, max.	131 °F

E3FA-DP21 — Mechanical
Parameter	Value
Body material	Plastic

E3FA-DP21 — Approvals
Parameter	Value
Standards / approvals	CE

Product details

Omron E3FA-DP21 M18 threaded diffuse photoelectric sensor — red LED, 100 mm maximum sensing distance on a 75 mm opaque target. PNP output, M12 quick-disconnect, selectable light-on/dark-on. Rated IP67 and IP69K, so it shrugs off the washdown spray on a filler deck. Response time 0.5 msec keeps up at line speed. Load current 100 mA max, supply 10-30 VDC.

Mount with the right-angle lens face oriented toward the target; indicator lights aid alignment. 4-pin M12 connector — wiring order per pinout (not shown here). Output reverse polarity protection, short circuit protection; power supply reverse polarity protection built in. Set the switching mode via the selector for light-on or dark-on operation.

Frequently asked questions

What series does the E3FA-DP21 belong to?

The E3FA series.

What protection features are included?

Output reverse polarity protection, output short circuit protection, and power supply reverse polarity protection.

Will the E3FA-DP21 drop into a panel wired for the E3FA-DP112M?

Not without rewiring; the DP112M uses a prewired 2 m cable, while the DP21 uses an M12 connector. The sensing distance and body dimensions are the same.
