The Omron E3FA-DP24-F2 is a current-production M18 cylindrical diffuse reflective photoelectric sensor. It uses a PNP output with a 100 mm sensing range and switches in 0.5 ms.

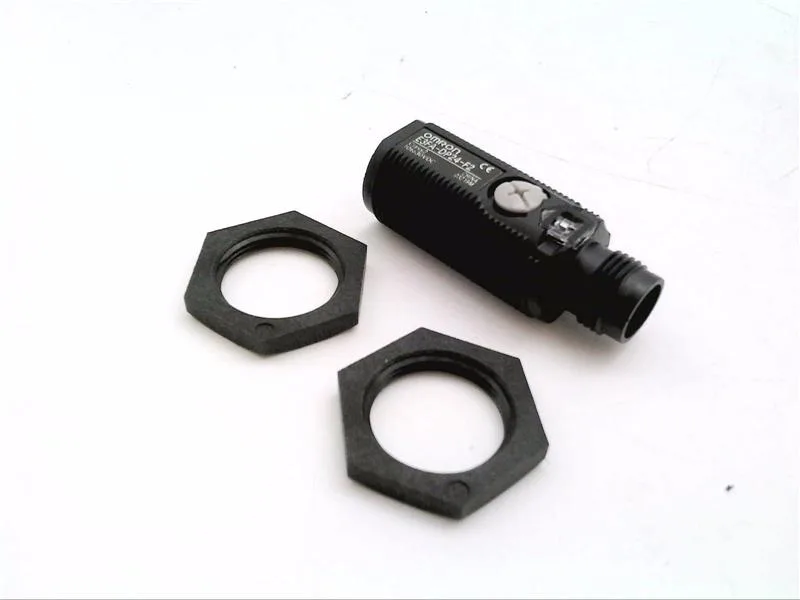

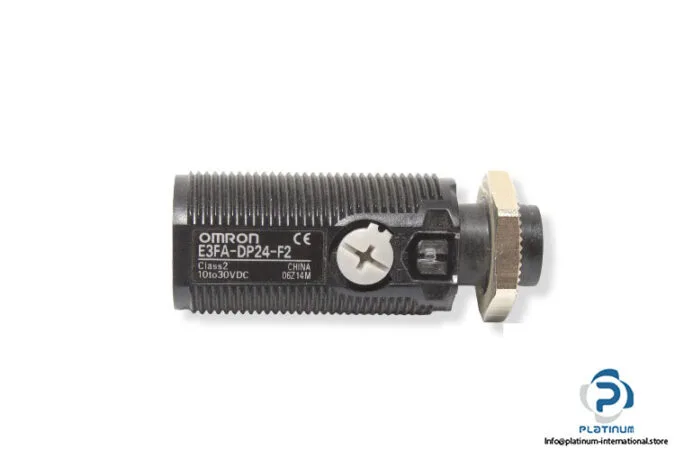

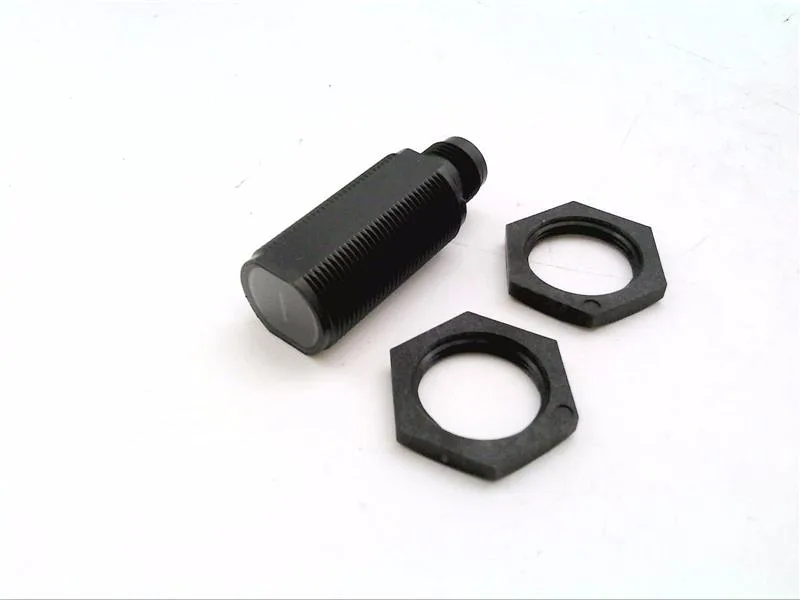

Omron E3FA-DP24-F2 Photoelectric Sensor, 100 mm, PNP
MPNE3FA-DP24-F2
Omron E3FA-DP24-F2, M18 cylindrical photoelectric diffuse reflective sensor, PNP output, 100 mm sensing range, 0.5 ms response time, M12 connector.
$29.97Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Model | E3FA-DP24-F2 |
Sensing
| Parameter | Value |
|---|---|
| Type | Photoelectric Diffuse Reflective Sensor |
| Response time | 0.5 ms |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage range | 10 … 30 V DC |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 … 55 °C |
Specifications
| Parameter | Value |
|---|---|
| Sensing Range | 100 mm |
| Electrical Design | PNP |
| Connector type | M12 |
| Condition | Used |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 0,05 kg |
| Housing | Cylindrical |
| Shelf no. | 230105 |
| Dimensions | M18 |
| Operation mode | Dark-ON, Light-ON |
| Housing material | ABS |
Product details
MPN
E3FA-DP24-F2
