The Omron E3FBDP22OMI is a diffuse reflective photoelectric sensor that delivers a 300 mm sensing range with a PNP output, all enclosed in a compact housing rated IP67 and IP69K — the latter is the one that matters in a washdown zone. The M12 4-pin connector matches the existing harness in most panel-mount sockets, so it's a direct mechanical swap for other E3FB-series sensors with the same connector. Response time runs 500 µs, fast enough to pick up bottles on a line running at moderate speeds without missing a count. Operates on 10–30 VDC, switches up to 100 mA. Red LED light visible during setup; light-ON or dark-ON configurable via wiring.

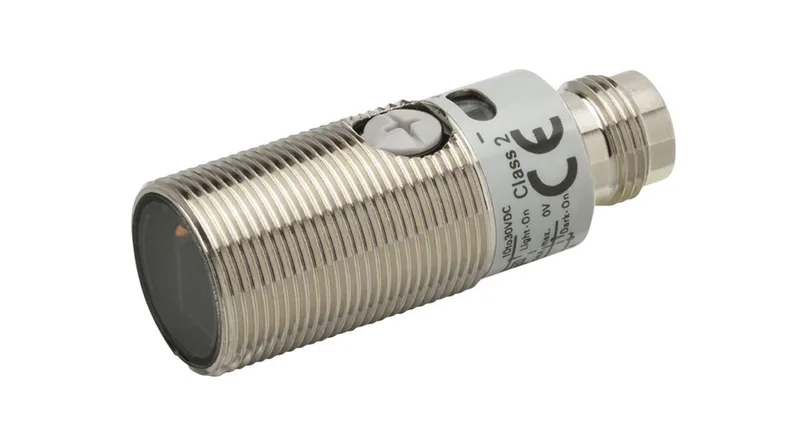

Omron E3FBDP22OMI Photoelectric Sensor, PNP, 300mm, M12
MPNE3FBDP22OMI
Omron E3FB Series, Diffuse Reflective Photoelectric Sensor, PNP Output, 300 mm Sensing Distance, M12 Connector, IP67 / IP69K.
$84.02 – $88.45Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | E3FB |
| Sensor type | Diffuse Reflective Sensor |
Sensing
| Parameter | Value |
|---|---|
| Sensing distance, max. | 300 mm |
| Response time | 500 us |
| Light type | LED, Red |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
Output
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 100 mA |
| Switching type | Light-ON / Dark-ON |
Connection
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, 4-Pin |
Environmental
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP67;IP69K |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
Mechanical
| Parameter | Value |
|---|---|
| Length | 48 mm |
Product details
Frequently asked questions
What is the difference between E3FBDP22OMI and E3FBDN22OMI?
The E3FBDN22OMI has NPN output instead of PNP. All other specs — 300 mm range, M12 connector, IP69K — are identical.
