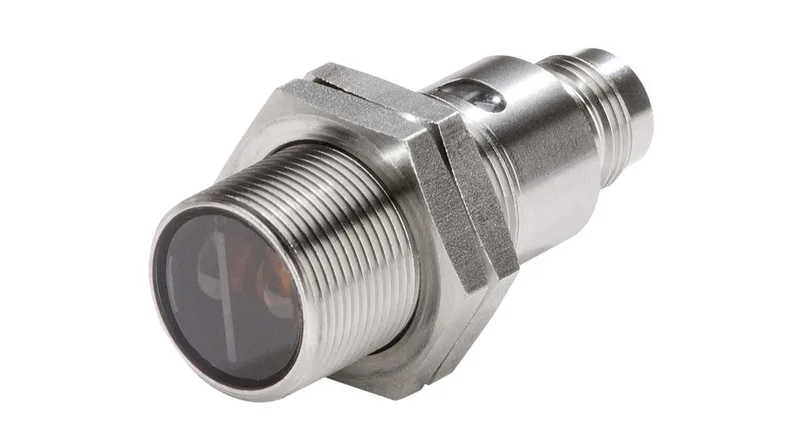

Omron E3FC series, diffuse reflective photoelectric sensor, PNP output, 300 mm sensing distance, M12 connector, IP67/68/69K.
| Parameter | Value |
|---|---|
| Series | E3FC |
| Sensor type | Diffuse Reflective Sensor |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 300 mm |
| Response time | 500 us |
| Light type | LED, Red |
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 100 mA |
| Switching type | Light-ON / Dark-ON |
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, 4-Pin |
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP67;IP68;IP69K |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
| Parameter | Value |
|---|---|
| Length | 48 mm |
The E3FCDP22OMS is a diffuse reflective sensor from Omron's E3FC family, spec'd for detection without a reflector. With a 300 mm sensing window and PNP output switching in 500 µs, it handles presence checks on conveyor feed or fill-level in small vessels. The M12 connector simplifies panel wiring — one less gland to seal.
Rated IP67, IP68, and IP69K for submersion and high-pressure washdown.
No — the E3FCRP21OMS is retroreflective, requiring a separate reflector. The E3FCDP22OMS is diffuse, so the mounting and sensing principle differ.
The series datasheet covers RoHS and REACH. Specific UL or IEC marks are not listed in the record; verify with the manufacturer for your region's certification needs.
