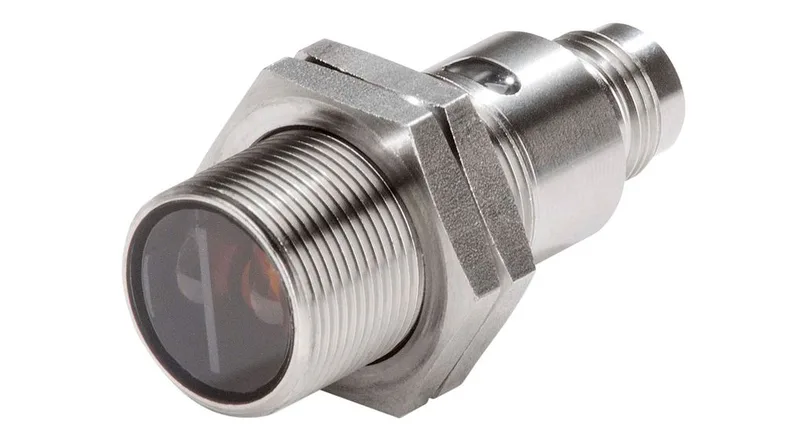

Omron E3FC series, E3FCRP21OMS retro-reflective photoelectric sensor, PNP output, 4 m range, 500 µs response, M12 connector, IP67/IP68/IP69K.
| Parameter | Value |
|---|---|
| Series | E3FC |
| Sensor type | Retro-Reflective Sensor |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 4 m |
| Sensing distance, min. | 100 mm |
| Response time | 500 us |
| Light type | LED, Red |
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
| Parameter | Value |
|---|---|
| Output type | PNP |
| Load current | 100 mA |
| Switching type | Light-ON / Dark-ON |
| Parameter | Value |
|---|---|
| Termination type | Connector, M12, 4-Pin |
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP67;IP68;IP69K |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
| Parameter | Value |
|---|---|
| Length | 48 mm |
The E3FCRP21OMS: M12 connector mates with standard cordsets; 48 mm body length fits tight panel cutouts. Ambient from -25 to 55 °C. Light-ON / Dark-ON mode selectable via wiring — no DIP switch. PNP output sources current to the load; verify sink compatibility with the PLC input card.
It is 48 mm.
It belongs to the Omron E3FC series.
