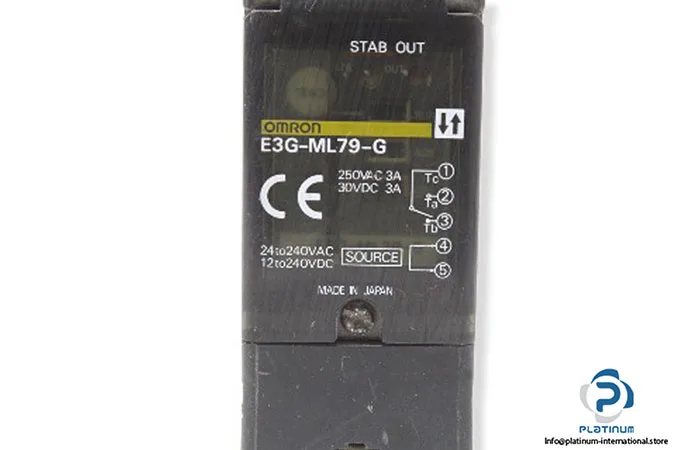

Omron E3G-ML79-G — Photoelectric Sensors

Omron E3G-ML79-G Long Distance Photoelectric Sensor, Relay O

MPNE3G-ML79-G

Omron E3G-ML79-G long distance retroreflective AC/DC photoelectric sensor, relay output, 250 V supply, 0.2–2 m range, selectable Light-ON/Dark-ON.

$467.78Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

E3G-ML79-G — Specifications
ParameterValue
Output signalRelay
Product typeLong distance retroreflective AC/DC photoelectric Sensor
Dimensions_text68 x 29 x 85 mm
Housing_materialPlastic
Response time30
Supply voltage250
Switching_output_typeLight-ON,Dark-ON, Switch Selectable
Sensing distance max0.2
Operating temperature high-25 … 55 °C

Product details

The Omron E3G-ML79-G is a long distance retroreflective photoelectric sensor with a relay output, designed to work on AC or DC supplies up to 250 V. The relay can switch loads directly, making it a simple drop-in for older control cabinets or for interfacing with a PLC without an extra amplifier. Sensing range is 0.2 to 2 m (retroreflective with reflector; reflector not included). Response time is 30 ms, fast enough for most conveyor, part-positioning, and door applications. The switching output is selectable via a physical slide: Light-ON or Dark-ON. That means one part covers both machine-state logics — no need to carry two variants in the van.

Field-fit note

Plastic housing, 68 x 29 x 85 mm. Operating temperature -25 to 55 °C. The relay output means you can drive a contactor coil or PLC input directly, but watch the load rating — the sensor's relay contacts are rated for the supply voltage, so confirm your load current is within the relay's spec (data sheet required for exact contact rating). If you're replacing a failed sensor on a line and the panel runs on 250 VAC, this one fits without adding a DC supply brick.

Frequently asked questions

What is the sensing range of the E3G-ML79-G?

0.2 to 2 m in retroreflective mode (requires a reflector).

What output type does this sensor have?

Relay output. It can switch AC or DC loads up to 250 V.

Is the E3G-ML79-G the same as E3G-ML79G?

Yes — E3G-ML79G is the alternate part number for the same sensor. They are interchangeable.

Will it drop into a panel originally specified for E3G-ML79G without rewiring?

Yes, same part, same wiring. Refer to the data sheet for pinout details.

MPN
E3G-ML79-G
