Omron E3JKRR125MOMS — Photoelectric Sensors

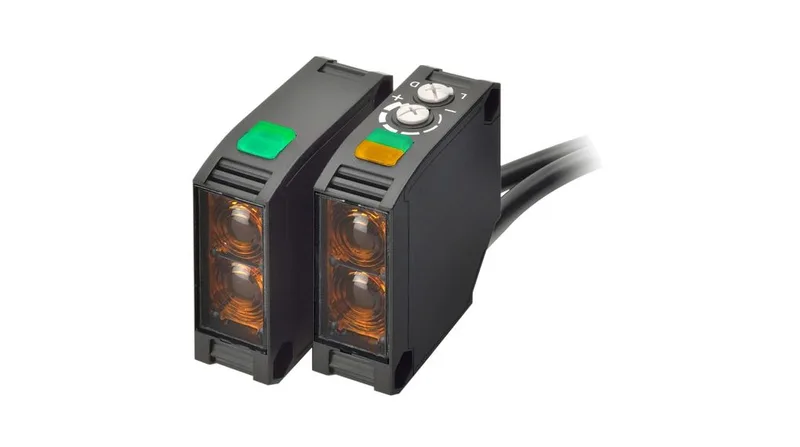

E3JKRR125MOMS Retro-Reflective Sensor, Relay Output, 10 m, 2

MPNE3JKRR125MOMS

Omron E3JK series retro-reflective photoelectric sensor, 10 m range, relay output, LED red light, cable 5 m, IP64, 24–240 V, 20 ms response.

$134.75 – $143.41Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3JKRR125MOMS — Identification
ParameterValue
SeriesE3JK
Sensor typeRetro-Reflective Sensor
E3JKRR125MOMS — Sensing
ParameterValue
Sensing distance, max.10 m
Sensing distance, min.100 mm
Response time20 ms
Light typeLED, Red
E3JKRR125MOMS — Electrical
ParameterValue
Operating voltage, min.24 V
Operating voltage, max.240 V
E3JKRR125MOMS — Output
ParameterValue
Output typeRelay
Load current100 mA
Switching typeLight-ON / Dark-ON
E3JKRR125MOMS — Connection
ParameterValue
Termination typeCable, 5 m
E3JKRR125MOMS — Environmental
ParameterValue
Protection rating (IP)IP64
Operating temperature, min.-25 °C
Operating temperature, max.55 °C
E3JKRR125MOMS — Mechanical
ParameterValue
Length50 mm
Width18 mm
Height52 mm

Product details

The E3JKRR125MOMS is a retro-reflective photoelectric sensor with a relay output rated for 100 mA at 24–240 V AC/DC. The relay allows direct switching of higher-voltage loads without an interface module, though the 20 ms response time limits it to applications where object speed is not critical — think conveyor presence detection or level sensing in slower material handling. Cable-connected with 5 m of wire, rated IP64 for splash-resistant indoor environments. The 10 m sensing range provides headroom for dusty or slightly misaligned retro-reflectors, but the minimum distance of 100 mm means you cannot detect objects closer than that.

If your panel uses 24 VDC only and needs fast sensing, the E3SDBP21TOMS is the closer fit — but expect to change the connector and cable length. If you need relay isolation for AC loads, the E3JK is the correct choice.

Frequently asked questions

What is the sensor's width and height?

Width is 18 mm, height is 52 mm, length is 50 mm.

Will this sensor drop into a panel specified around the E3SDBP21TOMS without rewiring?

No. The E3JK has a 5 m cable termination and relay output, while the E3SDBP21TOMS has an M12 connector and PNP output. The mounting footprint may also differ; the E3JK is 18 mm wide vs 15.8 mm for the E3SDBP21TOMS. Panel rewiring and potential bracket changes are needed.
