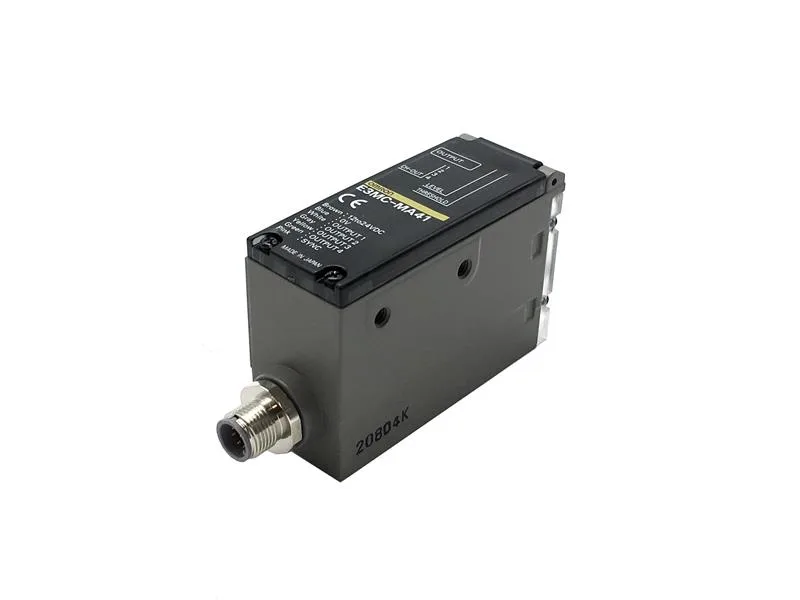

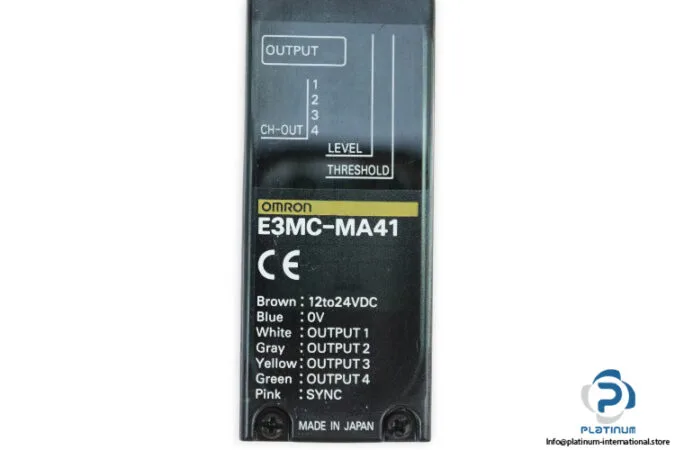

The OMRON E3MC-MA41 is a built-in amplifier type RGB color sensor that detects color differences at a fixed working distance of 60 ± 10 mm with a 12 mm spot diameter. It houses a PNP output stage with four discrete channels, letting a controller read multiple color thresholds or switch separate loads per detected color. Enclosure is IP66, zinc die-cast — made for washdown and debris-heavy floors. Power supply is 12/24 VDC, typical for factory automation buses.
The sensor has a fixed sensing range of 60 ± 10 mm and 12 mm spot diameter, with 4 PNP outputs. Enclosure rating is IP66 and ambient temperature range -25 / 55°C.
