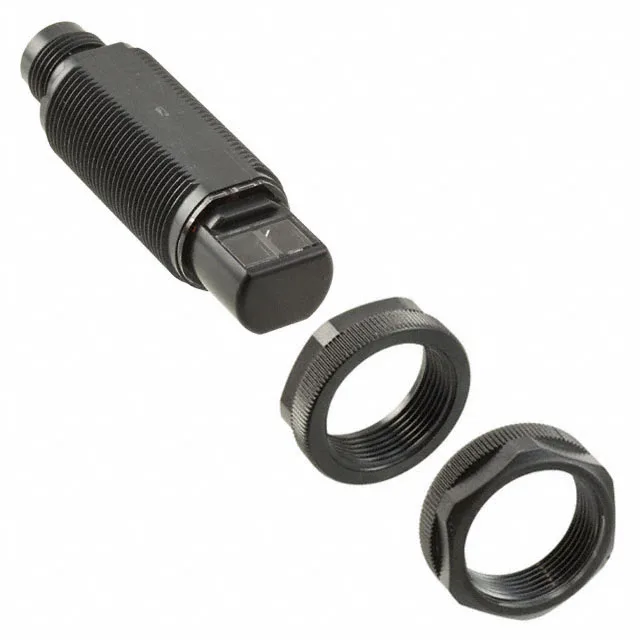

The E3RA-DN22 is listed at a mature lifecycle stage, meaning it remains in established production and is stocked as a standard catalog item. Bulk packaging supports volume procurement. This is a preferred catalog line, so it fits into tail-spend consolidation programs — no special negotiation needed for standard orders.
Integration Notes
Powered from 10-30 VDC, the sensor draws a modest current — verify the sensor supply capacity. The M12 connector (4-pin) mates with standard pre-wired cordsets; ensure the cable is rated for the application environment. The selectable NPN output (light-on or dark-on) is set via wiring: refer to the connection diagram for the specific mode. IP69K rating allows high-pressure, high-temperature washdown, making it appropriate for food processing or heavy washdown areas. The single-turn adjustment is accessible after installation, but limit cycle adjustments to avoid thread wear.
