The Omron E3S-AD31 is a diffuse-reflective photoelectric sensor with a PNP open-collector output. Sensing range is 10 to 200 mm on a 10-30 VDC supply, sourcing up to 100 mA. Housed in PBT with a 2 m cable, it offers Light-ON/Dark-ON selectable switching — a single sensor covers both background and foreground detection needs without a separate amplifier. Rated for -25 to 55 °C ambient, it fits conveyor, packaging, and material-handling stations where a short-range presence check inside a machine guard is needed.

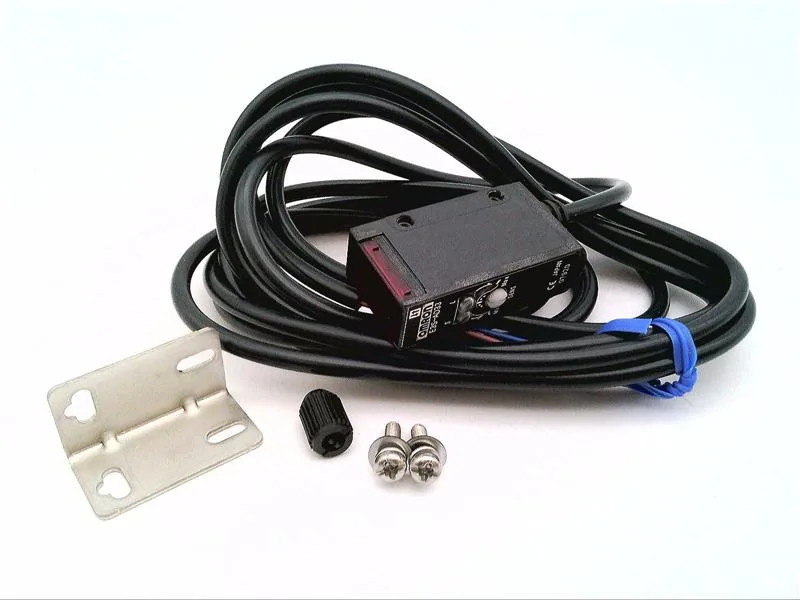

Omron E3S-AD31 Photoelectric Diffuse Sensor, PNP, 10-200 mm
MPNE3S-AD31
Omron E3S-AD31 Photoelectric Diffuse-Reflective Sensor, PNP, 10-200 mm range, 2m cable.
$112.48Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Model | E3S-AD31 |
Sensing
| Parameter | Value |
|---|---|
| Type | Photoelectric Diffuse-Reflective Sensor |
Electrical
| Parameter | Value |
|---|---|
| Operating voltage range | 10 … 30 V DC |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature range | -25 … 55 °C |
Specifications
| Parameter | Value |
|---|---|
| Electrical Design | PNP, Open Collector |
| Connector type | Cable,2 m |
| Condition | Used |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 0,125 kg |
| Shelf no. | 230205 |
| Dimensions | 40 x 13 x 21 mm |
| Operating range | 10 … 200 mm |
| Housing material | PBT |
| Switching output | Light-ON/Dark-ON selectable |
| Max. current rating | 100 mA |
Product details
Frequently asked questions
Can the E3S-X3CE4 replace the E3S-AD31 without rewiring?
Not confirmed. Both are photoelectric sensors in the same category, but the E3S-X3CE4's output type and sensing method are not detailed in available data. Verify output configuration (PNP/NPN) and wiring before substitution.
