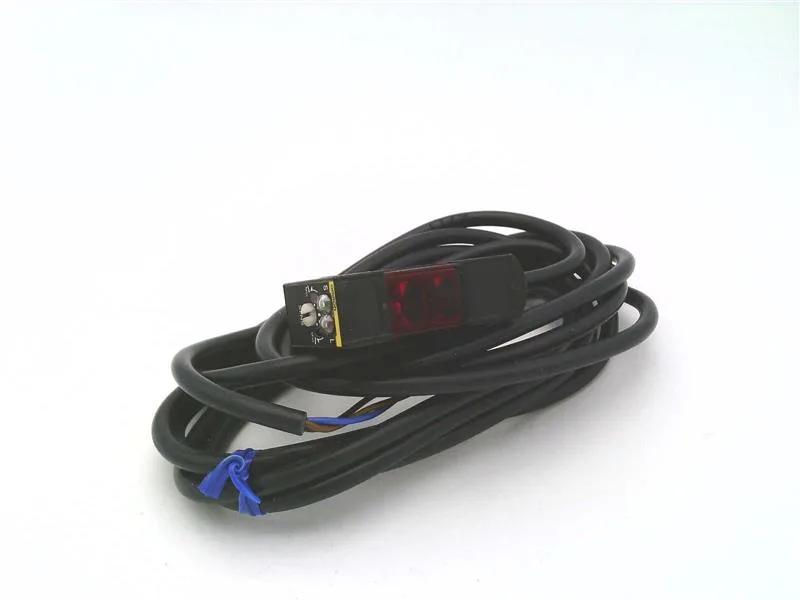

The Omron E3S-AT61-D is a built-in amplifier photoelectric sensor running on 10 to 30 VDC and rated for Light-ON operation. It detects objects up to 7 meters away, draws 20 mA (plus 15 mA with turbo), and carries an IP67 rating for dust and water ingress.
Omron E3S-AT61-D Built-In Amplifier Photoelectric Sensor, 7m
MPNE3S-AT61-D
Omron E3S-AT61-D Built-In Amplifier Photoelectric Sensor, Light-ON, 10–30 VDC, 7 m sensing distance, IP67, pre-wired cable.
$97.22Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Model | E3S-AT61-D |
| Parameter | Value |
|---|---|
| Sensing distance | Capable of detecting objects up to 7 meters away. |
| Parameter | Value |
|---|---|
| Supply voltage | Wide voltage range of 10 to 30 VDC, making it suitable for various industrial applications. |
| Parameter | Value |
|---|---|
| Condition | New |
| Parameter | Value |
|---|---|
| Weight | 0,05 kg |
| Shelf no. | 250232 |
| Operation mode | Light-ON operation for efficient detection of objects in the sensing path. |
| Type of product | Built-In Amplifier Photoelectric Sensor |
| Connection method | Pre-wired for easy and quick installation. |
| Operating temperature | Operating range from -25°C to 55°C, making it versatile for diverse industrial settings. |
| Current consumption | Maximum of 20 mA for both emitter and receiver, with an additional 15 mA if using the turbo function. |
| IP rating | IP67, ensuring resistance against dust and water, perfect for use in challenging environments. |
Product details
MPN
E3S-AT61-D
