Omron E3S-GS3E4 2M — Photoelectric Sensors

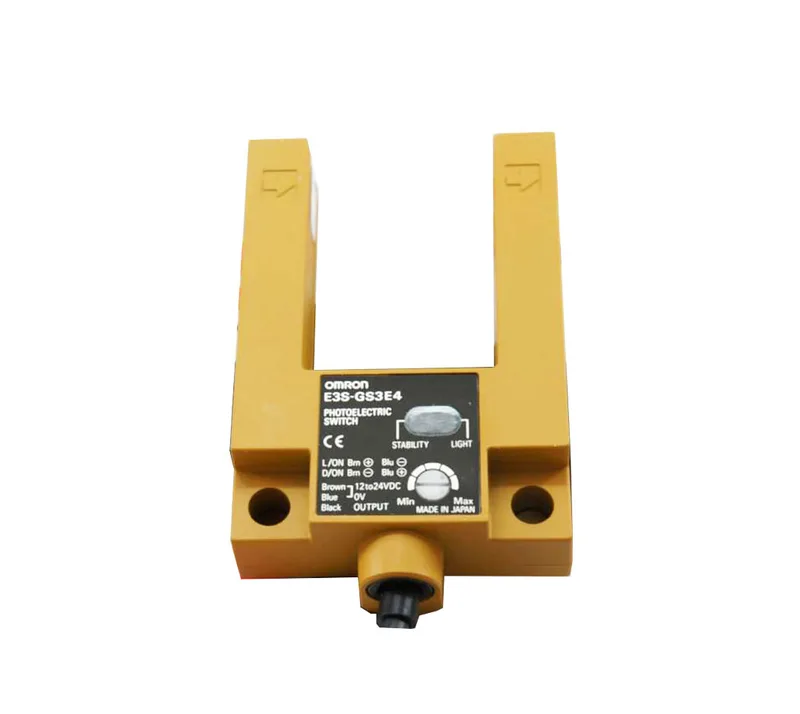

Omron E3S-GS3E4 2M Photoelectric Sensor, 3 cm IR, Metal Hous

MPNE3S-GS3E4 2M

Omron E3S-G Photoelectric Sensor, E3S-GS3E4 2M, Infrared LED, 3 cm sensing distance, metal housing, 12–24 VDC.

$78.93Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3S-GS3E4 2M — Sensing
ParameterValue
Sensing distance3cm
Light sourceInfrared LED
E3S-GS3E4 2M — Other specifications
ParameterValue
Weight0.23 Kg
Product typeE3S-G Photoelectric Sensor
Housing materialmetal
Standard objectsOpaque and translucent (3 mm)
Operating temperatureOperating: –25 to 55 °C
Current consumption40 mA max.
Power supply voltage12 VDC –10% to 24 VDC +10%, ripple (p-p): 10% max.
Response time (ON, OFF)1 ms max.

Product details

The Omron E3S-GS3E4 2M is a fixed-focus photoelectric sensor from the E3S-G series, using an infrared LED to detect opaque and translucent objects at a 3 cm range. The metal housing makes it suited for production lines where mechanical shock or coolant splash is a concern. Power supply is 12–24 VDC, draws 40 mA max, and the output responds in 1 ms – enough for counting or presence checking on a moderate-speed conveyor.

The E3Z-LL61 is a distance-settable background-suppression (BGS) sensor with a red laser diode and adjustable range up to 300 mm on white paper. The E3S-GS3E4 2M is a fixed-focus infrared type at 3 cm, non-adjustable. These are different sensing methods and application niches; the E3Z-LL61 cannot drop in as a functional replacement without re-engineering the fixture and sensitivity settings.

Frequently asked questions

What is the sensing distance and light source?

It senses at a fixed 3 cm using an infrared LED. Standard detectible objects are opaque and translucent pieces 3 mm in size.

Can the E3Z-LL61 replace the E3S-GS3E4 2M?

No, the E3Z-LL61 is a background-suppression sensor with a red laser and adjustable range up to 300 mm, using a different sensing method and mounting footprint. It is not a functional drop-in replacement.

MPN
E3S-GS3E4 2M
