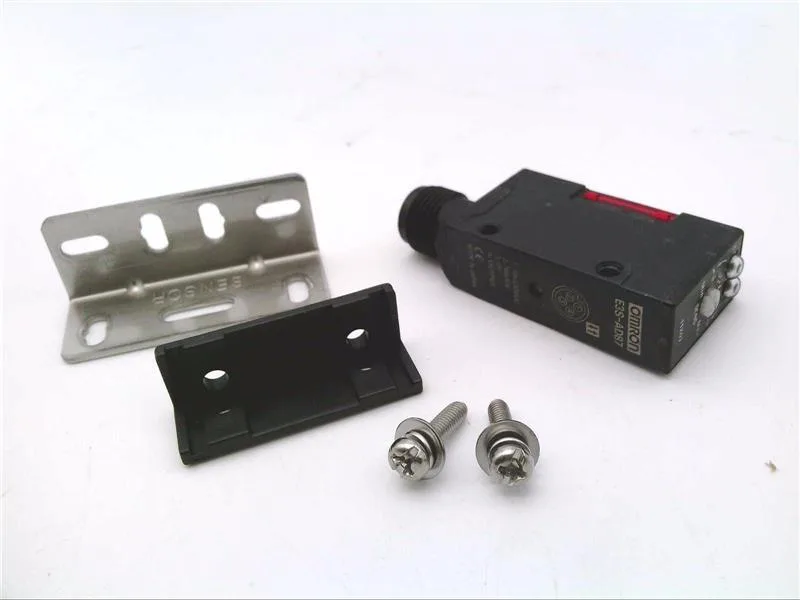

Omron E3S-A series photoelectric proximity sensor, PNP output, 700 mm range, infrared LED, 500 µs, M12 connector, IP67.
| Parameter | Value |
|---|---|
| Series | E3S-A |
| Sensor type | Photoelectric Proximity Sensor |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 700 mm |
| Response time | 500 us |
| Light type | LED, Infrared |
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
| Parameter | Value |
|---|---|
| Output type | PNP |
| Switching type | Light / Dark ON |
| Parameter | Value |
|---|---|
| Termination type | Connector, M12 |
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP67 |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |
The Omron E3SAD87 is a photoelectric proximity sensor from the E3S-A series, specified with an infrared LED light source and a sensing distance of 700 mm. Its PNP output switches at 500 µs, configurable for light-on or dark-on operation. The M12 connector and IP67 rating make it suitable for washdown environments in packaging or material handling lines.
It belongs to the Omron E3S-A series.
It uses an infrared LED light source, as opposed to the red visible light found in sibling models like the E3SAT36.
Physically yes—both share the same M12 connector and housing. Functionally no, because the E3SAD87 uses infrared light with a 700 mm range while the E3SAT36 uses red light with a 7 m range. The application's target material and sensing distance must match the sensor's rated capabilities.
Alternative models and sibling configurations in the same Omron series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
