Omron E3SAT36 — Proximity Sensors

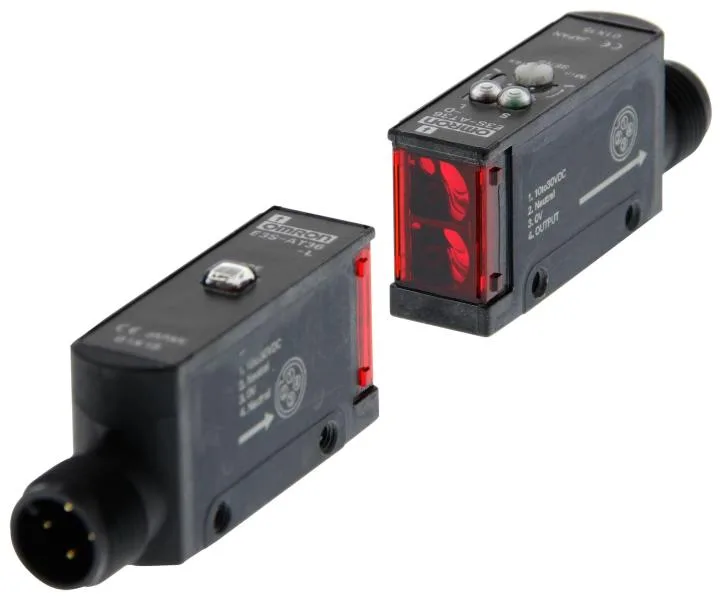

Omron E3SAT36 Photoelectric Sensor, PNP, 7 m, M12 Connector

MPNE3SAT36

Omron E3S-A Series Photoelectric Proximity Sensor, PNP, 7 m Range, M12 Connector, IP67, 500 µs Response.

$169.29 – $246.00Ref. price · indicative, final on quote
Omron E3SAT36 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3SAT36 — Identification
ParameterValue
SeriesE3S-A
E3SAT36 — Sensing
ParameterValue
Sensing distance, max.7 m
E3SAT36 — Electrical
ParameterValue
Operating voltage, max.30 V
Operating voltage, min.10 V
Termination typeConnector, M12
E3SAT36 — Environmental
ParameterValue
Operating temperature, max.55 °C
Operating temperature, min.-25 °C
IP protection ratingIP67
E3SAT36 — Other specifications
ParameterValue
Light typeLED, Red
Sensor typePhotoelectric Proximity Sensor
Response time500 us
Switching typeLight / Dark ON
Optical sensor output typePNP

Product details

The Omron E3SAT36 is a photoelectric proximity sensor from the E3S-A series, giving you a PNP output that switches at 500 µs and reaches out 7 m with a red LED. It runs on 10–30 VDC, tolerates -25 to 55 °C, and the M12 connector makes for a secure, quick disconnect in washdown zones — IP67 covers the housing. Light/Dark ON is selectable via the control line, so it'll do both opposed and retroreflective logic without a swap.

M12 Versus Pre-Wired — E3SAT31 vs E3SAT36

The E3SAT31 carries the same sensing guts (7 m, PNP, 500 µs) but terminates with a pre-wired cable instead of an M12 connector. If your panel is laid out for a fixed cable gland, the E3SAT31 drops in without an extra mating cordset. The E3SAT36 suits panels where you want to unplug the sensor during maintenance or swap a damaged cable without rewiring. Same mounting hole pattern, same electrical specs — the decision is purely termination style.

M12 connector for quick disconnect in washdown environments. Light/Dark ON is selectable via the control line.

Frequently asked questions

Is the E3SAT36 PNP or NPN?

It's PNP output.

Will the E3SAT36 drop in where a E3SAT31 was specified?

Electrically yes — same PNP output, 7 m range, and response time. The difference is termination: E3SAT36 uses an M12 connector, while E3SAT31 has a pre-wired cable. The panel wiring will need an M12 cordset instead of a direct cable gland.

MPN
E3SAT36
