Omron E3S-A series photoelectric proximity sensor, PNP output, 7 m sensing range, 500 µs response, 10-30 VDC, pre-wired IP67.
| Parameter | Value |
|---|---|
| Series | E3S-A |
| Sensor type | Photoelectric Proximity Sensor |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 7 m |
| Response time | 500 us |
| Light type | LED, Red |
| Parameter | Value |
|---|---|
| Operating voltage, min. | 10 V |
| Operating voltage, max. | 30 V |
| Parameter | Value |
|---|---|
| Output type | PNP |
| Switching type | Light / Dark ON |
| Parameter | Value |
|---|---|
| Termination type | Pre-Wired |
| Parameter | Value |
|---|---|
| Protection rating (IP) | IP67 |
| Operating temperature, min. | -25 °C |
| Operating temperature, max. | 55 °C |

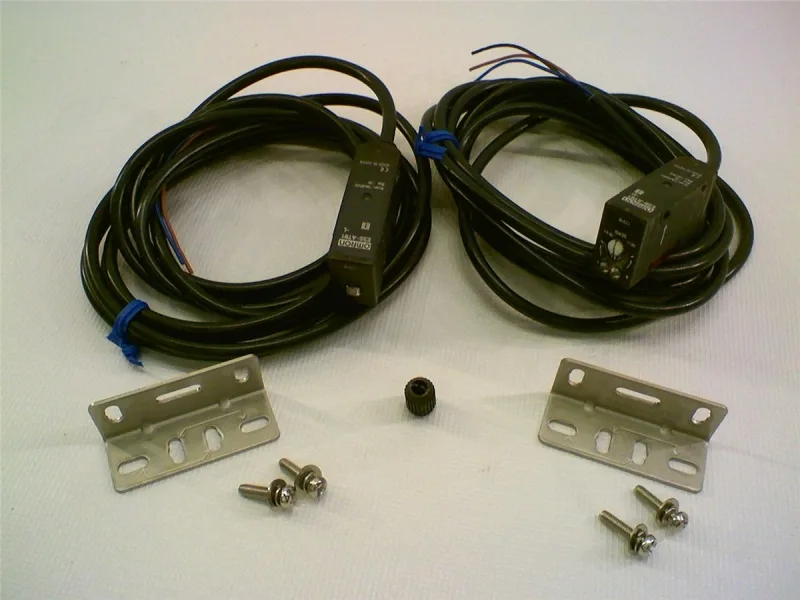

Omron E3SAT81 PNP photoelectric proximity sensor. Sensing range 7 m, response time 500 µs. Operates on 10–30 VDC, IP67, pre-wired.
Supply 10–30 VDC to brown wire, PNP output on black. Response time 500 µs. IP67 rated.
Sensing distance is 7 m, response time is 500 µs.
Alternative models and sibling configurations in the same Omron series. For obsolete or discontinued parts, these models can serve as compatible replacements or functional alternatives for plant maintenance.
