Omron E3SLS10XB4 — Proximity Sensors

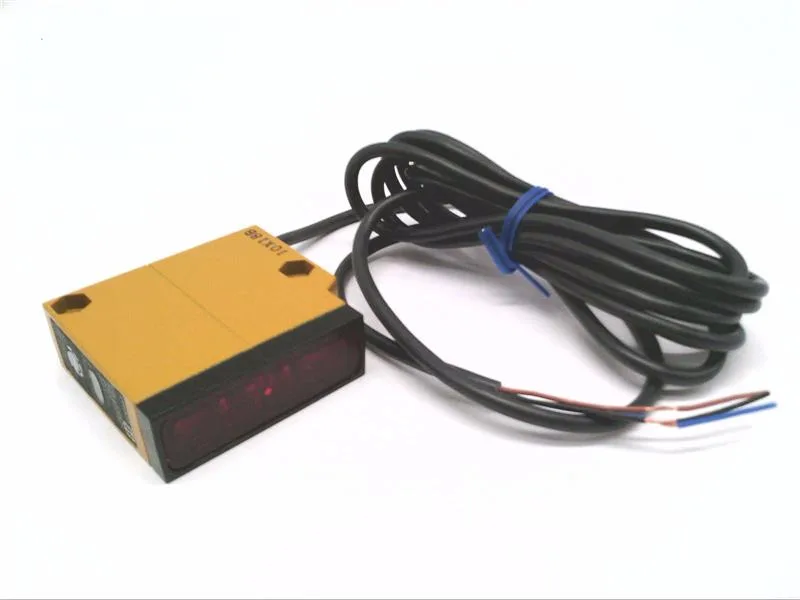

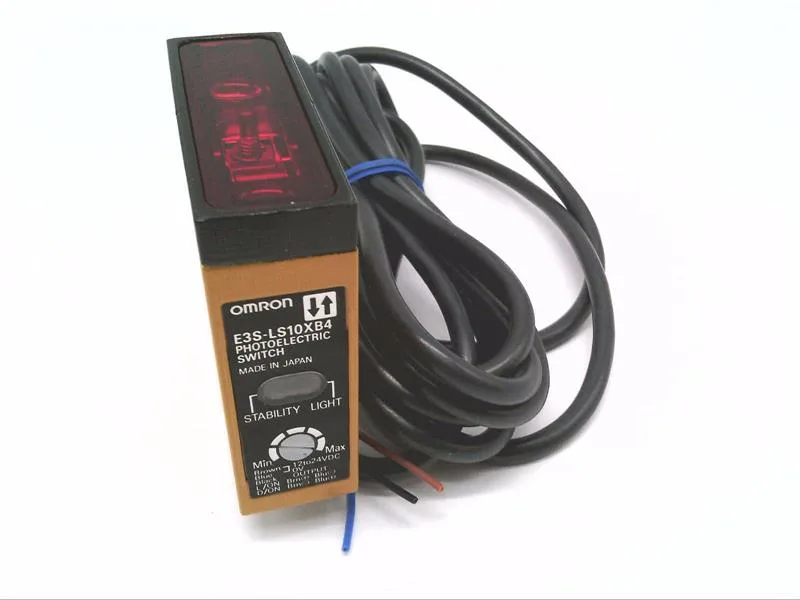

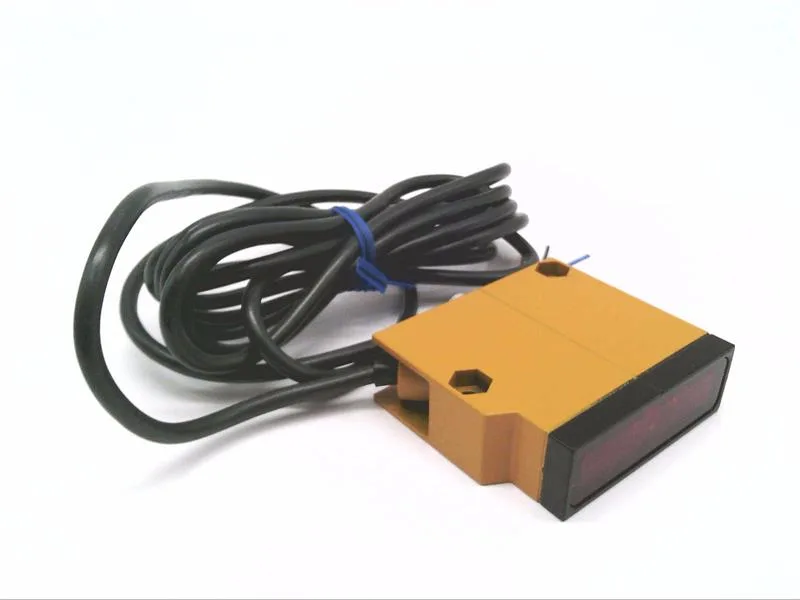

Omron E3SLS10XB4 Photoelectric Sensor, PNP 100 mm, IP67

MPNE3SLS10XB4

Omron E3S series, Photoelectric Proximity Sensor, PNP output, 30–100 mm sensing range, 12–24 VDC, 1 ms response, red LED, pre-wired, IP67.

$354.20 – $489.11Ref. price · indicative, final on quote
Omron E3SLS10XB4 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3SLS10XB4 — Identification
ParameterValue
SeriesE3S
E3SLS10XB4 — Sensing
ParameterValue
Sensing distance, max.100 mm
E3SLS10XB4 — Electrical
ParameterValue
Operating voltage, max.24 V
Operating voltage, min.12 V
Termination typePre-Wired
E3SLS10XB4 — Output
ParameterValue
Load current100 mA
E3SLS10XB4 — Mechanical
ParameterValue
Length55 mm
E3SLS10XB4 — Environmental
ParameterValue
Operating temperature, max.55 °C
Operating temperature, min.-25 °C
IP protection ratingIP67

Product details

Omron E3SLS10XB4: a 50 mm wide photoelectric proximity sensor in the E3S family, PNP output switching 100 mA loads at 12–24 VDC. Sensing range adjustable between 30 mm and 100 mm, with a 1 ms response time. Red LED emitter, selectable Light/Dark ON. Pre-wired cable, IP67 rated for washdown environments.

Quick cross-shop: E3SLS3PWM5J03M

Same series, same PNP output and 1 ms response, but the XB4 carries IP67 and reaches 100 mm; the 5J03M is IP40 and maxes at 60 mm. The XB4 supports both Light ON and Dark ON modes, while the 5J03M is Light-ON only. The XB4 body is larger (50 mm width vs 19.3 mm) — check cutout clearance before dropping it in.

Frequently asked questions

What are the electrical specifications of the E3SLS10XB4?

PNP output, 12–24 VDC supply, 100 mA load current, 1 ms response time, sensing range 30–100 mm.

What is the IP rating?

IP67, rated for dust-tight and temporary immersion.

Is the sensing mode selectable?

Yes, Light ON and Dark ON are both available.

How does the E3SLS10XB4 compare to the E3SLS3PWM5J03M?

The XB4 has a wider sensing range (100 mm vs 60 mm), IP67 vs IP40, and supports Light/Dark ON vs Light-ON only. The XB4 body is larger: 50 mm wide vs 19.3 mm.

MPN
E3SLS10XB4
