Omron E3SR67 — Photoelectric Sensors

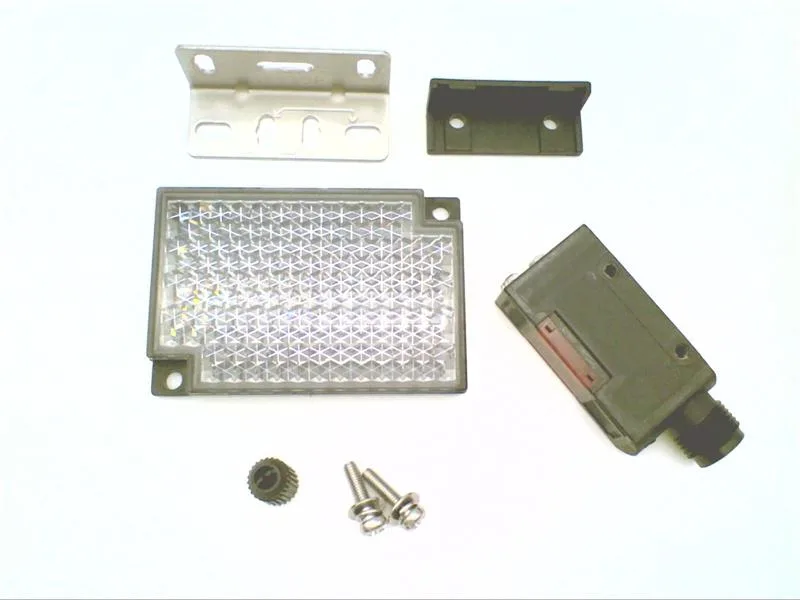

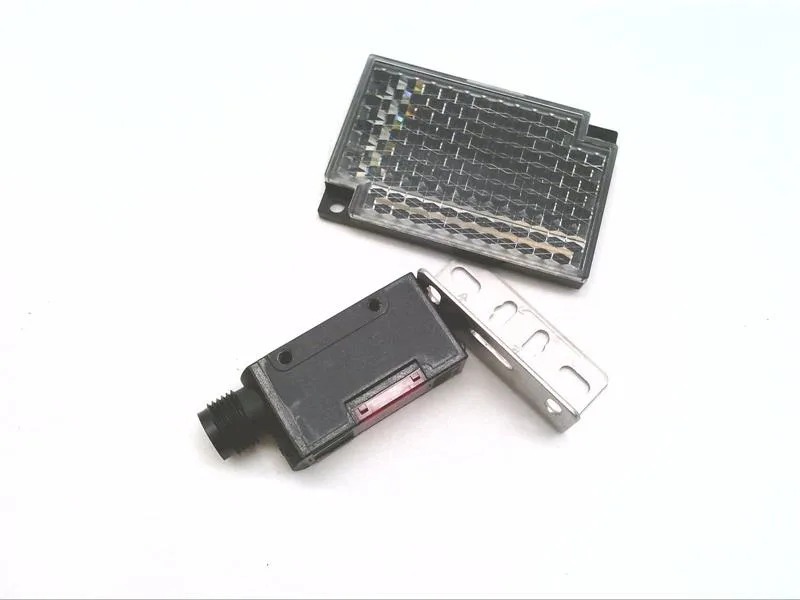

Omron E3SR67 Retroreflective Sensor, NPN, 300mm

MPNE3SR67

Omron E3S series retroreflective photoelectric sensor, E3SR67, NPN output, 100–300 mm sensing range, 10–30 VDC, 100 mA, infrared LED, M12 connector, IP67.

$139.32Ref. price · indicative, final on quote
Omron E3SR67 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3SR67 — Identification
ParameterValue
SeriesE3S
Sensor typeObject Detection Sensor
E3SR67 — Sensing
ParameterValue
Sensing distance, max.300 mm
Sensing distance, min.100 mm
Response time1 ms
Light typeLED, Infrared
E3SR67 — Electrical
ParameterValue
Operating voltage, min.10 V
Operating voltage, max.30 V
E3SR67 — Output
ParameterValue
Output typeNPN
Load current100 mA
Switching typeLight / Dark ON
E3SR67 — Connection
ParameterValue
Termination typeConnector, M12
E3SR67 — Environmental
ParameterValue
Protection rating (IP)IP67
Operating temperature, min.0 °C
Operating temperature, max.40 °C
E3SR67 — Mechanical
ParameterValue
Length50 mm
Width29.2 mm

Product details

The Omron E3SR67 is an NPN retroreflective photoelectric sensor from the E3S series, offering a sensing range of 100–300 mm with a 1 ms response time. The infrared LED emitter and M12 connector simplify panel wiring with IP67 protection for wet washdown zones.

The E3SR67 is mechanically identical to the E3SR87: same 29.2 mm width, 50 mm length, sensing range, response time, and M12 connector. The sole difference is the output polarity — the E3SR67 is NPN, while the E3SR87 is PNP. If your installed base uses a PNP input card, the E3SR87 drops in without rewiring; the E3SR67 requires swapping the output type or adding a signal converter. For a panel already wired for NPN, this sensor is a direct spare.

M12 connector, Light/Dark ON selector, IP67 housing, 29.2 mm width, 1 ms response. Part of the E3S series.

Frequently asked questions

What is the sensing distance and response time of the E3SR67?

Sensing distance is 100–300 mm with a 1 ms response time. The minimum standoff is 100 mm.

Will the E3SR67 drop into a panel specified for the E3SR87 without rewiring?

Mechanically yes — same 29.2 mm width, same M12 connector. Electrically no: the E3SR67 is NPN, the E3SR87 is PNP. Panel rewiring or a polarity converter is required.

Which E3SR6x variant is interchangeable with the E3SR67?

The E3SR87 is the closest functional twin — identical dimensions, sensing range, and response time — but with PNP output instead of NPN. No other E3SR6x sensor matches the NPN output type.
