The Omron E3T-CD11 2M is a current-production diffuse reflective sensor from the E3T family. It uses an infrared LED (870nm) to detect objects within a 3mm to 50mm adjustable range — useful for close-in sensing on packaging machinery, small-part conveyors, or material handling gates. The 500µs response time keeps up with most line speeds without missing parts. NPN open collector, light-ON output with wire connection. Rated IP67 and -25°C to 55°C, so it handles dust, hose-down cleaning, and typical factory environments. No compliance certs shown here, but the Omron E3T series commonly meets CE/UL — verify with the factory pack if your panel requires RoHS or UL listing documents.

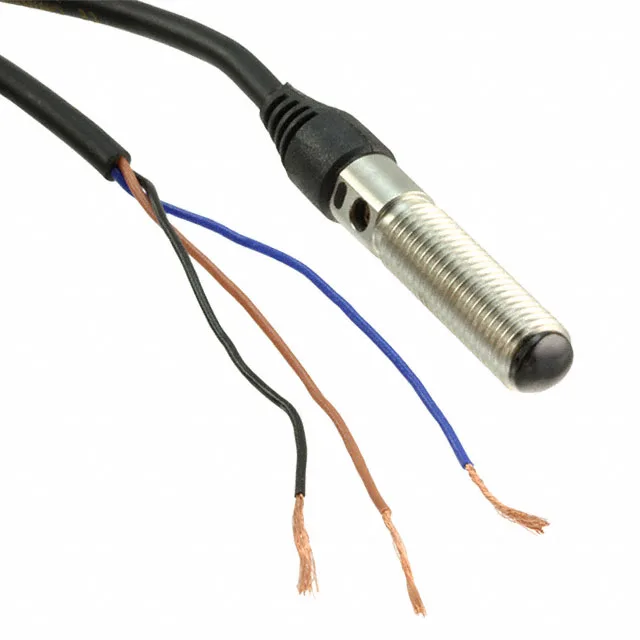

E3T-CD11 2M Photoelectric Sensor, Diffuse, NPN, 50mm
MPNE3T-CD11 2M
Omron E3T series, diffuse reflective photoelectric sensor, E3T-CD11 2M, NPN open collector light-ON, 3–50mm adjustable, IP67, 12–24VDC, Bulk.
$83.82Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | E3T |
| Parameter | Value |
|---|---|
| Sensing method | Reflective, Diffuse |
| Sensing distance | 0.118" ~ 1.969" (3mm ~ 50mm) ADJ |
| Response time | 500µs |
| Light source | Infrared (870nm) |
| Parameter | Value |
|---|---|
| Output configuration | NPN - Open Collector/Light-ON |
| Parameter | Value |
|---|---|
| Operating temperature range | -25°C ~ 55°C |
| Parameter | Value |
|---|---|
| Supply voltage | 12V ~ 24V |
| Connection method | Wire |
| IP rating | IEC IP67 |
Product details
MPN
E3T-CD11 2M
