Part in brief

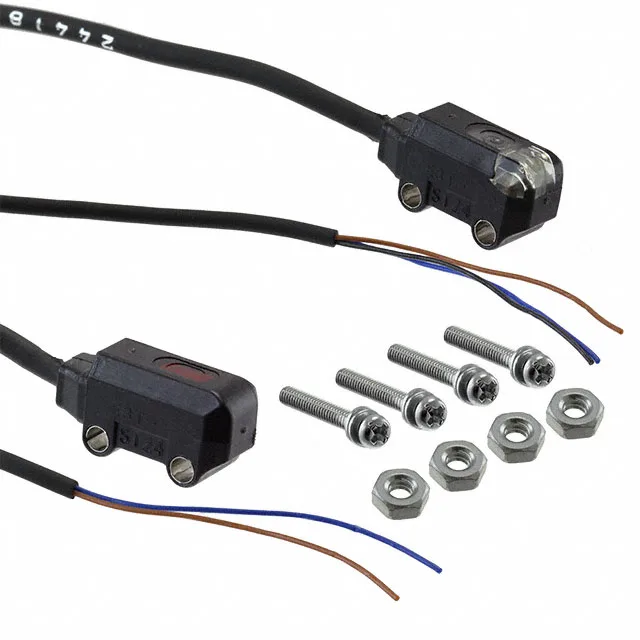

The Omron E3T-ST24 2M is a through-beam photoelectric sensor in the E3T series, rated for 300 mm sensing distance with PNP Dark-ON output. Supply range is 12–24 VDC; response time is 1 ms. Cable-connected, rated IP67, and operates from -25°C to 55°C. Adjustment is on-board via a trimmer.
Peer comparison with E3S-AR86
The E3S-AR86 is a retroreflective sensor with 2 m range, selectable Light-ON/Dark-ON output, and a connector versus the E3T-ST24 2M's fixed cable. Sensing method difference alone means the two aren't interchangeable without optical path redesign. If your BOM called for the E3S-AR86, the E3T-ST24 2M will not drop in — through-beam requires a separate emitter and receiver alignment while retroreflective uses a single housing with reflector.
Integration notes
Supply range 12–24 VDC; PNP Dark-ON output turns on when beam is broken. Confirm PLC input type before wiring. Rated IP67, operating from -25°C to 55°C.
