Omron E3TST112M — Proximity Sensors

Omron E3TST112M Photoelectric Sensor, NPN, 1m, 7mm Wide, IP6

MPNE3TST112M

Omron E3T Series, Photoelectric Proximity Sensor, NPN, 1 m, 1 ms, 24 V, 50 mA, LED Red, Pre-Wired, IP67, E3TST112M.

$101.60Ref. price · indicative, final on quote
Omron E3TST112M datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

E3TST112M — Identification
ParameterValue
SeriesE3T
E3TST112M — Sensing
ParameterValue
Sensing distance, max.1 m
E3TST112M — Electrical
ParameterValue
Operating voltage, max.24 V
Operating voltage, min.12 V
Termination typePre-Wired
E3TST112M — Output
ParameterValue
Load current50 mA
E3TST112M — Mechanical
ParameterValue
Length18.5 mm
E3TST112M — Environmental
ParameterValue
Operating temperature, max.55 °C
Operating temperature, min.-25 °C
IP protection ratingIP67

Product details

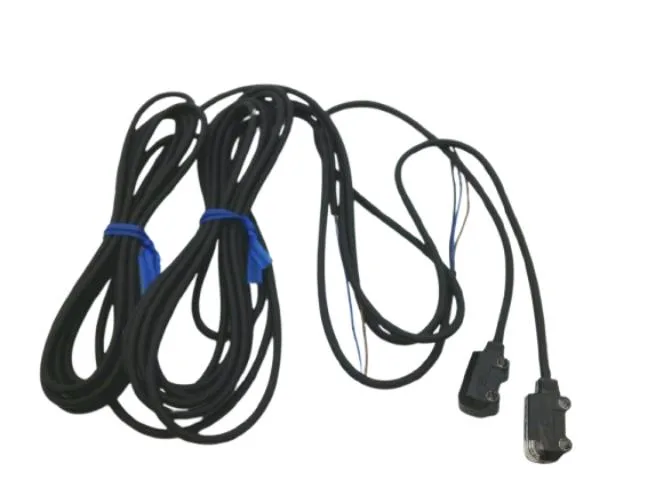

The Omron E3TST112M is a 7 mm wide photoelectric proximity sensor from the E3T family, with a red LED emitter and NPN output. It switches loads up to 50 mA at 12–24 VDC, responds in 1 ms, and carries a 1 m sensing distance. The 7 mm × 9.5 mm × 18.5 mm body and pre-wired cable simplify installation in compact machine frames. IP67 covers washdown zones. Light-ON logic means the output turns on when the beam detects the target – confirm your PLC expects a sinking (NPN) input, as this unit is NPN, not PNP.

Width 7 mm, height 9.5 mm, length 18.5 mm. Pre-wired cable simplifies installation.

Frequently asked questions

What are the key dimensions?

Width 7 mm, height 9.5 mm, length 18.5 mm.

Does E3TST112M work in a panel originally wired for E3T-ST14?

Not without modification. The output polarity (NPN vs PNP) and switching logic (Light-ON vs Dark-ON) differ. Confirm the PLC input module and wiring before substituting.

MPN
E3TST112M
