Omron E3XNA41 — Photoelectric Sensors

Omron E3XNA41 Fiber-Optic Amplifier Sensor, PNP, 24 V, 200 m

MPNE3XNA41

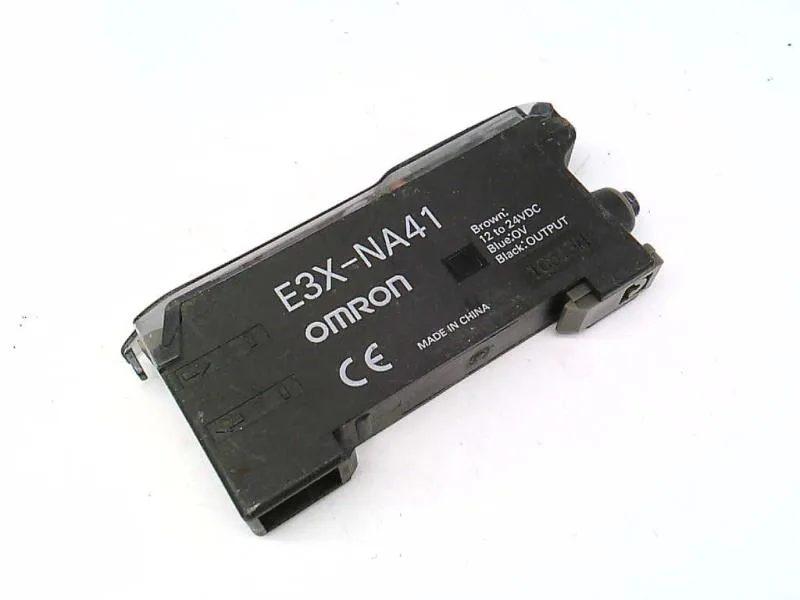

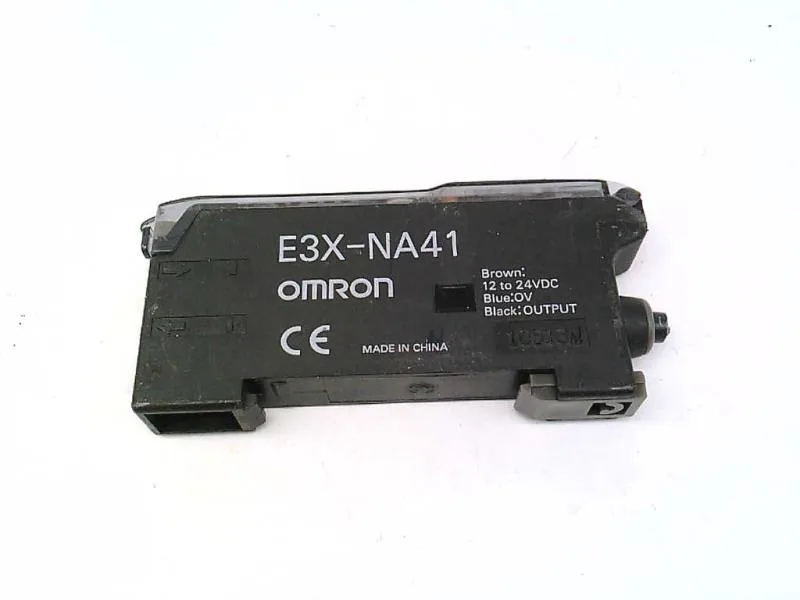

Omron E3X-NA41 fiber-optic amplifier sensor, PNP output, 24 VDC, 200 mm sensing range, IP50, Red LED 680 nm, male connector cable 3-pin 2 m.

$412.04Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

E3XNA41 — Specifications
ParameterValue
IP ratingIP50
Light_sourceRed LED 680 nm
Product typeFiber-Optic Amplifier Sensor
Connector_typeMale Connector Cable 3-Pin, 2m
Operation_modeDark-ON, Light-ON
Timer_functionOFF-Delay Timer: 40 ms (Fixed)
Dimensions_text31.5 x 64.3 x 10 mm
Application_typeObject Detection
Housing_materialPolybutylene Terephthalate (PBT)
Response time200
Supply voltage24
Switching current0.035
Switching_output_typePNP
Sensing distance max200
Operating temperature high-25 … 55 °C

Product details

Fiber-optic amplifier for tight-space object detection

The E3XNA41: The Omron E3X-NA41 is a fiber-optic amplifier sensor with a PNP switching output, rated for 24 VDC supply and a maximum sensing distance of 200 mm. It uses a Red LED (680 nm) light source and offers selectable Dark-ON or Light-ON operation modes, plus a fixed 40 ms OFF-delay timer. Housed in a 31.5 x 64.3 x 10 mm PBT body with IP50 protection, this amplifier is suited for dry, indoor panel mounting where dust ingress is limited. The 200 ms response time means it handles slower-moving parts or presence checks — not high-speed counting lines.

Frequently asked questions

Where can I buy E3XNA41 and how do I get a price?

This part is sourced and quoted to order against an RFQ through independent distribution. Current pricing and availability are confirmed at quote time.

What is E3XNA41's sensing distance and output type?

The E3X-NA41 has a maximum sensing distance of 200 mm and a PNP switching output rated at 35 mA.
