Diffuse reflective reach vs. E3S peers

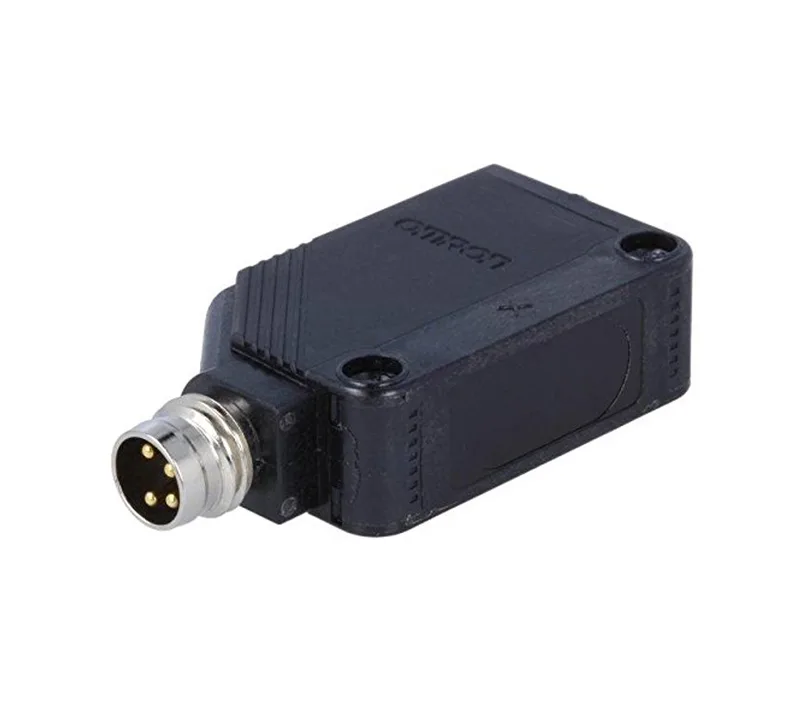

E3Z-D67 detects a 300×300 mm white target at 1 m, while the E3SR87 (PNP) and E3SR67 (NPN) in the E3S series are limited to 100 to 300 mm. The E3Z gives you three times the standoff, which opens mounting positions further from the product path. But the connection differs: E3Z-D67 comes with a 2 m cable or M8 connector; the E3S peers use an M12 connector. Plan for a different mating cable if you're swapping them. Also, the output type is not labeled NPN or PNP on the E3Z-D67 – it is an uncommitted open collector, so confirm polarity requirements with your PLC input card.
Field considerations for cold environments
The housing is PBT (polybutylene terephthalate) and the lens is denatured polyallylate. While no low-temperature limit is listed, PBT retains impact resistance down to about -30 °C in typical grades. The hysteresis of 20% max of the set distance helps prevent chattering when condensation forms on the lens. The stability indicator (green LED) gives a visible confidence check during commissioning or after defrost cycles. For ammonia or CO2 cold storage, make sure the connecting cable/connector chosen is rated for the actual ambient temperature at the mounting location.
