E5AK-AA2-500

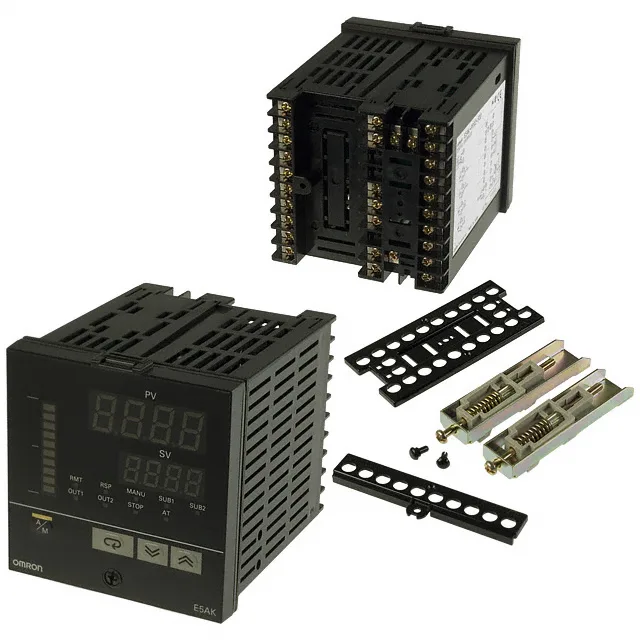

Omron E5AK-AA2-500
MPNE5AK-AA2-500
Obsolete
CONTROL TEMP/PROCESS 100-240V
$431.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Identification
| Parameter | Value |
|---|---|
| Series | E5AK |
| Type | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) |
Electrical
| Parameter | Value |
|---|---|
| Supply voltage | 100 ~ 240VAC |
Performance
| Parameter | Value |
|---|---|
| Control method | On/Off, Proportional (PID) |
| Features | Heater Fault Detection, Option Cards Available |
I/O
| Parameter | Value |
|---|---|
| Input range | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC |
| Output type | Relay (2), Option Cards Available |
Communication
| Parameter | Value |
|---|---|
| Communication interfaces | Option Cards Available |
Display
| Parameter | Value |
|---|---|
| Display type | LED - Dual Color Characters |
| Characters per row | 4, 4 |
| Character height | 0.590" (15.00mm), 0.413" (10.50mm) |
Environmental
| Parameter | Value |
|---|---|
| Operating temperature | -10°C ~ 55°C |
| Ingress protection (IP rating) | IP66 - Dust Tight, Water Resistant |
Mechanical
| Parameter | Value |
|---|---|
| Mounting type | Panel Mount |
| Panel cutout dimensions | Square - 92.00mm x 92.00mm |
| Termination style | Screw Terminal |
Other specifications
| Parameter | Value |
|---|---|
| Weight | 0.993 lb (450.42 g) |
MPN
E5AK-AA2-500
